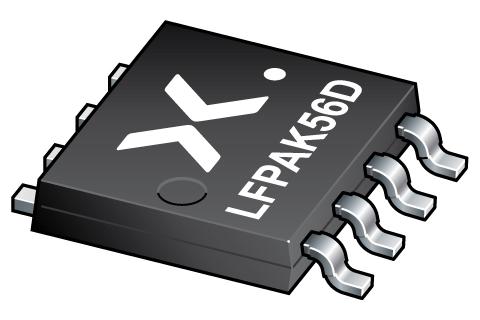

Nexperia PHPT610030NKX Dual NPN Transistor, 3 A, 100 V, 8-Pin LFPAK56D, SOT1205

PHPT610030NKX Nexperia Dual NPN Transistor, 3 A, 100 V, 8-Pin LFPAK56D, SOT1205
Nexperia

Product Information

Transistor Type:
NPN
Dimensions:
5.3 x 4.7 x 1.05mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
25 W
Maximum Collector Base Voltage:
100 V
Maximum Collector Emitter Voltage:
100 V
Maximum Operating Frequency:
140 MHz
Maximum Emitter Base Voltage:
7 V
Package Type:
LFPAK56D, SOT1205
Number of Elements per Chip:
2
Maximum DC Collector Current:
3 A
Maximum Operating Temperature:
+175 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Dual NPN Transistor 3 A 100 V 8-Pin LFPAK56D SOT1205 manufactured by Nexperia. The manufacturer part number is PHPT610030NKX. The transistor is a npn type. The given dimensions of the product include 5.3 x 4.7 x 1.05mm. The product is available in surface mount configuration. Provides up to 25 w maximum power dissipation. Additionally, it has 100 v maximum collector base voltage. Whereas features a 100 v of collector emitter voltage (max). It carries 140 mhz of maximum operating frequency. It features a 7 v of maximum emitter base voltage. The package is a sort of lfpak56d, sot1205. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 3 a. It has a maximum operating temperature of +175 °c. It contains 8 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
