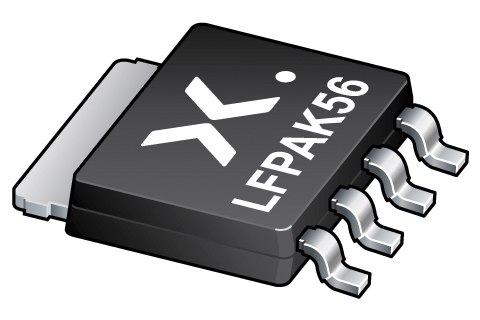

Nexperia PHPT60603NYX NPN Transistor, 3 A, 60 V, 4 + Tab-Pin LFPAK56, SOT669

PHPT60603NYX Nexperia NPN Transistor, 3 A, 60 V, 4 + Tab-Pin LFPAK56, SOT669
Nexperia

Product Information

Minimum DC Current Gain:
200
Transistor Type:
NPN
Dimensions:
5 x 4.1 x 1.05mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
25 W
Maximum Collector Base Voltage:
60 V
Maximum Collector Emitter Voltage:
60 V
Maximum Operating Frequency:
140 MHz
Maximum Emitter Base Voltage:
7 V
Package Type:
LFPAK56, SOT669
Number of Elements per Chip:
1
Maximum DC Collector Current:
3 A
Maximum Operating Temperature:
+175 °C
Pin Count:
4 + Tab
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Transistor 3 A 60 V 4 + Tab-Pin LFPAK56 SOT669 manufactured by Nexperia. The manufacturer part number is PHPT60603NYX. It features up to 200 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 5 x 4.1 x 1.05mm. The product is available in surface mount configuration. Provides up to 25 w maximum power dissipation. Additionally, it has 60 v maximum collector base voltage. Whereas features a 60 v of collector emitter voltage (max). It carries 140 mhz of maximum operating frequency. It features a 7 v of maximum emitter base voltage. The package is a sort of lfpak56, sot669. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 3 a. It has a maximum operating temperature of +175 °c. It contains 4 + tab pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PHPT60603NYX on website for other similar products.
We accept all major payment methods for all products including ET16800326. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PHPT60603NYX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PHPT60603NYX NPN Transistor, 3 A, 60 V, 4 + Tab-Pin LFPAK56, SOT669. You can also check on our website or by contacting our customer support team for further order details on Nexperia PHPT60603NYX NPN Transistor, 3 A, 60 V, 4 + Tab-Pin LFPAK56, SOT669.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800326 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800326.
Yes. We ship PHPT60603NYX Internationally to many countries around the world.
