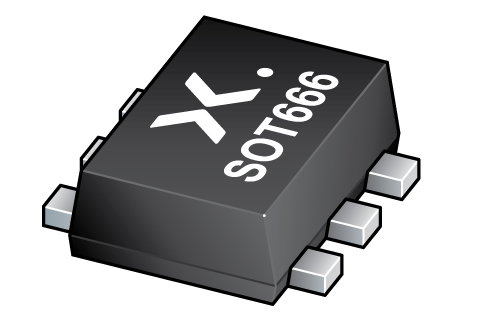

Nexperia, PEMD12,115, Dual NPN + PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin SOT-666

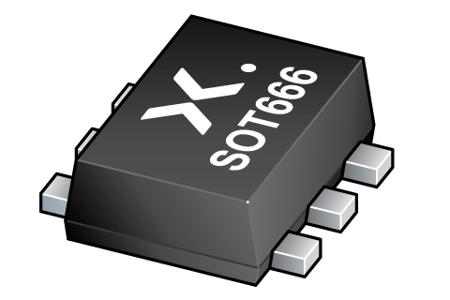

PEMD12-115 Nexperia, PEMD12,115, Dual NPN + PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin SOT-666
Nexperia

Product Information

Base-Emitter Resistor:
47kΩ
Transistor Type:
NPN/PNP
Dimensions:
1.7 x 1.3 x 0.6mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Emitter Voltage:
50 V
Maximum Emitter Base Voltage:
10 V
Package Type:
SOT-666
Number of Elements per Chip:
2
Maximum DC Collector Current:
100 mA
Typical Resistor Ratio:
1
Transistor Configuration:
Dual
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Typical Input Resistor:
47 kΩ
RoHs Compliant
Checking for live stock

This is Dual NPN + PNP Digital Transistor 100 mA 50 V 47 kΩ Ratio Of 1 6-Pin SOT-666 manufactured by Nexperia. The manufacturer part number is PEMD12,115. It has about 47kω base-emitter resistor . The transistor is a npn/pnp type. The given dimensions of the product include 1.7 x 1.3 x 0.6mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 10 v of maximum emitter base voltage. The package is a sort of sot-666. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 1 resistor ratio . The product offers dual transistor configuration. It has a maximum operating temperature of +150 °c. It contains 6 pins. Whereas, it has a typical 47 kω input resistor .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PEMD12,115 on website for other similar products.
We accept all major payment methods for all products including ET16800242. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PEMD12,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia, PEMD12,115, Dual NPN + PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin SOT-666. You can also check on our website or by contacting our customer support team for further order details on Nexperia, PEMD12,115, Dual NPN + PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin SOT-666.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800242 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800242.
Yes. We ship PEMD12,115 Internationally to many countries around the world.
