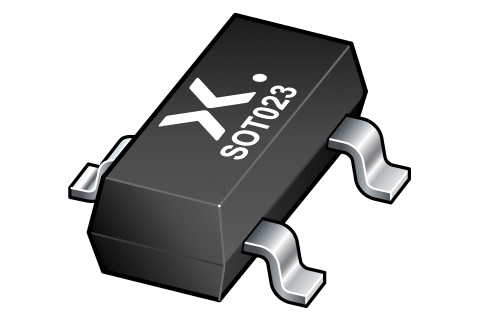

Nexperia, PDTC144WT,215 NPN Resistor-equipped Transistor, 100 mA 50 V 47 kΩ, Ratio Of 0.47, 3-Pin SOT

PDTC144WT-215 Nexperia, PDTC144WT,215 NPN Resistor-equipped Transistor, 100 mA 50 V 47 kΩ, Ratio Of 0.47, 3-Pin SOT
Nexperia

Product Information

Base-Emitter Resistor:
22kΩ
Transistor Type:
NPN
Dimensions:
3 x 1.4 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
250 mW
Maximum Collector Emitter Voltage:
50 V
Package Type:
SOT
Number of Elements per Chip:
1
Maximum DC Collector Current:
100 mA
Typical Resistor Ratio:
0.47
Transistor Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Typical Input Resistor:
47 kΩ
RoHs Compliant
Checking for live stock

This is NPN Resistor-equipped Transistor 100 mA 50 V 47 kΩ Ratio Of 0.47 3-Pin SOT manufactured by Nexperia. The manufacturer part number is PDTC144WT,215. It has about 22kω base-emitter resistor . The transistor is a npn type. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. Provides up to 250 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). The package is a sort of sot. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 0.47 resistor ratio . The product offers single transistor configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 47 kω input resistor .
