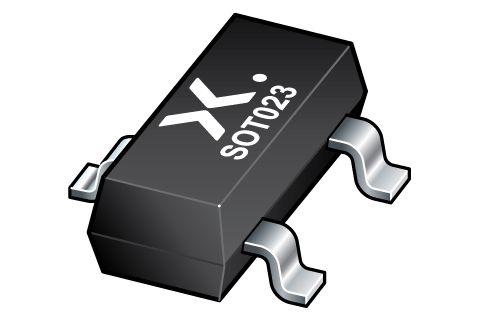

Nexperia, PBRN123ET,215 NPN Digital Transistor, 600 mA 40 V 2.2 kΩ, Ratio Of 1, 3-Pin SOT-23

PBRN123ET-215 Nexperia, PBRN123ET,215 NPN Digital Transistor, 600 mA 40 V 2.2 kΩ, Ratio Of 1, 3-Pin SOT-23
Nexperia

Product Information

Base-Emitter Resistor:
2.2kΩ
Transistor Type:
NPN
Dimensions:
3 x 1.4 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
570 mW
Maximum Collector Emitter Voltage:
40 V
Maximum Emitter Base Voltage:
10 V
Package Type:
SOT-23 (TO-236AB)
Number of Elements per Chip:
1
Maximum DC Collector Current:
600 mA
Typical Resistor Ratio:
1
Transistor Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Typical Input Resistor:
2.2 kΩ
RoHs Compliant
Checking for live stock

This is NPN Digital Transistor 600 mA 40 V 2.2 kΩ Ratio Of 1 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is PBRN123ET,215. It has about 2.2kω base-emitter resistor . The transistor is a npn type. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. Provides up to 570 mw maximum power dissipation. Whereas features a 40 v of collector emitter voltage (max). It features a 10 v of maximum emitter base voltage. The package is a sort of sot-23 (to-236ab). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 600 ma. In addition, it has a typical 1 resistor ratio . The product offers single transistor configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 2.2 kω input resistor .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PBRN123ET,215 on website for other similar products.
We accept all major payment methods for all products including ET16800116. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PBRN123ET,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia, PBRN123ET,215 NPN Digital Transistor, 600 mA 40 V 2.2 kΩ, Ratio Of 1, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Nexperia, PBRN123ET,215 NPN Digital Transistor, 600 mA 40 V 2.2 kΩ, Ratio Of 1, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800116 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800116.
Yes. We ship PBRN123ET,215 Internationally to many countries around the world.
