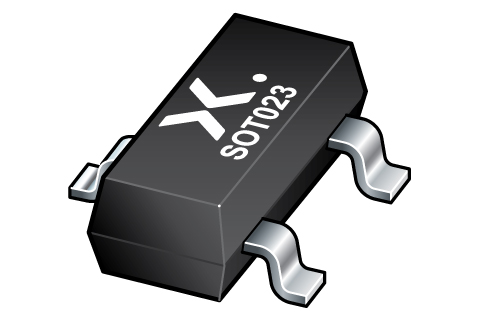

Nexperia BSR16,215 PNP Transistor, -600 mA, -60 V, 3-Pin SOT23, TO-236AB

BSR16-215 Nexperia BSR16,215 PNP Transistor, -600 mA, -60 V, 3-Pin SOT23, TO-236AB
Nexperia

Product Information

Minimum DC Current Gain:
75
Transistor Type:
PNP
Dimensions:
3 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
250 mW
Maximum Collector Base Voltage:
-60 V
Maximum Collector Emitter Voltage:
-60 V
Maximum Operating Frequency:
200 MHz
Maximum Emitter Base Voltage:
-5 V
Package Type:
SOT-23 (TO-236AB)
Number of Elements per Chip:
1
Maximum DC Collector Current:
-600 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Transistor -600 mA -60 V 3-Pin SOT23 TO-236AB manufactured by Nexperia. The manufacturer part number is BSR16,215. It features up to 75 of minimum DC current gain. The transistor is a pnp type. The given dimensions of the product include 3 x 1.4 x 1.1mm. The product is available in surface mount configuration. Provides up to 250 mw maximum power dissipation. Additionally, it has -60 v maximum collector base voltage. Whereas features a -60 v of collector emitter voltage (max). It carries 200 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of sot-23 (to-236ab). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of -600 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BSR16,215 on website for other similar products.
We accept all major payment methods for all products including ET16799747. Please check your shopping cart at the time of order.
You can order Nexperia brand products with BSR16,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia BSR16,215 PNP Transistor, -600 mA, -60 V, 3-Pin SOT23, TO-236AB. You can also check on our website or by contacting our customer support team for further order details on Nexperia BSR16,215 PNP Transistor, -600 mA, -60 V, 3-Pin SOT23, TO-236AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799747 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799747.
Yes. We ship BSR16,215 Internationally to many countries around the world.
