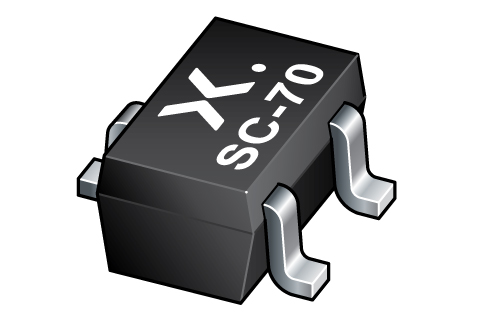

Nexperia BFS20W,115 NPN Transistor, 25 mA, 20 V, 3-Pin SC-70, SOT-323

BFS20W-115 Nexperia BFS20W,115 NPN Transistor, 25 mA, 20 V, 3-Pin SC-70, SOT-323
Nexperia

Product Information

Minimum DC Current Gain:
40
Transistor Type:
NPN
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Base Voltage:
30 V
Maximum Collector Emitter Voltage:
20 V
Maximum Operating Frequency:
470 MHz
Maximum Emitter Base Voltage:
20 V
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
1
Maximum DC Collector Current:
25 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Transistor 25 mA 20 V 3-Pin SC-70 SOT-323 manufactured by Nexperia. The manufacturer part number is BFS20W,115. It features up to 40 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Additionally, it has 30 v maximum collector base voltage. Whereas features a 20 v of collector emitter voltage (max). It carries 470 mhz of maximum operating frequency. It features a 20 v of maximum emitter base voltage. The package is a sort of sot-323 (sc-70). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 25 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BFS20W,115 on website for other similar products.
We accept all major payment methods for all products including ET16799735. Please check your shopping cart at the time of order.
You can order Nexperia brand products with BFS20W,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia BFS20W,115 NPN Transistor, 25 mA, 20 V, 3-Pin SC-70, SOT-323. You can also check on our website or by contacting our customer support team for further order details on Nexperia BFS20W,115 NPN Transistor, 25 mA, 20 V, 3-Pin SC-70, SOT-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799735 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799735.
Yes. We ship BFS20W,115 Internationally to many countries around the world.
