Name: BCP56TX, Nexperia
Brand: Nexperia
SKU: ET16799687
Price: 0.055 GBP
Availability: InStock

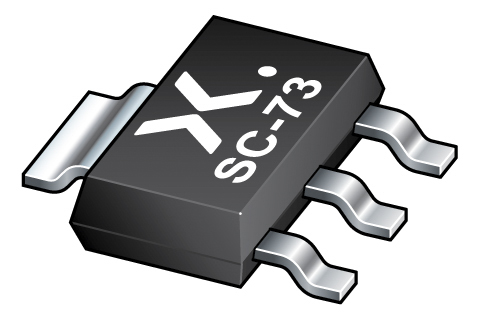

BCP56TX Nexperia NPN Transistor, 1 A, 80 V, 3-Pin SC-73, SOT223

(0)

Product Information

Minimum DC Current Gain:

Transistor Type:

NPN

Dimensions:

6.7 x 3.7 x 1.8mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

1.35 W

Maximum Collector Base Voltage:

100 V

Maximum Collector Emitter Voltage:

80 V

Maximum Operating Frequency:

180 MHz

Maximum Emitter Base Voltage:

5 V

Package Type:

SOT-223 (SC-73)

Number of Elements per Chip:

Maximum DC Collector Current:

1 A

Checking for live stock

This is NPN Transistor 1 A 80 V 3-Pin SC-73 SOT223 manufactured by Nexperia. The manufacturer part number is BCP56TX. It features up to 63 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 6.7 x 3.7 x 1.8mm. The product is available in surface mount configuration. Provides up to 1.35 w maximum power dissipation. Additionally, it has 100 v maximum collector base voltage. Whereas features a 80 v of collector emitter voltage (max). It carries 180 mhz of maximum operating frequency. It features a 5 v of maximum emitter base voltage. The package is a sort of sot-223 (sc-73). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 1 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search BCP56TX on website for other similar products.

We accept all major payment methods for all products including ET16799687. Please check your shopping cart at the time of order.

You can order Nexperia brand products with BCP56TX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Nexperia BCP56TX NPN Transistor, 1 A, 80 V, 3-Pin SC-73, SOT223. You can also check on our website or by contacting our customer support team for further order details on Nexperia BCP56TX NPN Transistor, 1 A, 80 V, 3-Pin SC-73, SOT223.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799687 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799687.

Yes. We ship BCP56TX Internationally to many countries around the world.
