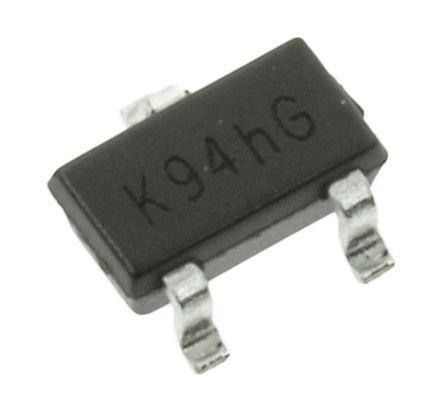

Toshiba 2SA1298-Y(TE85L,F) PNP Transistor, 800 mA, 25 V, 3-Pin SOT-346

Enrgtech Part No: ET16797680
|
Manufacturer Part No:
2SA1298-Y(TE85L,F)
|
Manufacturer: Toshiba

2SA1298-Y-TE85L-F- Toshiba 2SA1298-Y(TE85L,F) PNP Transistor, 800 mA, 25 V, 3-Pin SOT-346

Product Information

Transistor Type:

PNP

Dimensions:

2.9 x 1.5 x 1.1mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

200 mW

Maximum Collector Base Voltage:

-30 V

Maximum Collector Emitter Voltage:

-25 V

Maximum Emitter Base Voltage:

-5 V

Package Type:

SOT-346 (SC-59)

Number of Elements per Chip:

Maximum DC Collector Current:

-800 mA

Maximum Operating Temperature:

+150 °C

Pin Count:

Checking for live stock

This is PNP Transistor 800 mA 25 V 3-Pin SOT-346 manufactured by Toshiba. The manufacturer part number is 2SA1298-Y(TE85L,F). The transistor is a pnp type. The given dimensions of the product include 2.9 x 1.5 x 1.1mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Additionally, it has -30 v maximum collector base voltage. Whereas features a -25 v of collector emitter voltage (max). It features a -5 v of maximum emitter base voltage. The package is a sort of sot-346 (sc-59). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of -800 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

2SA1298, Silicon PNP Transistor for Low Frequency Power Amplifier Application(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
