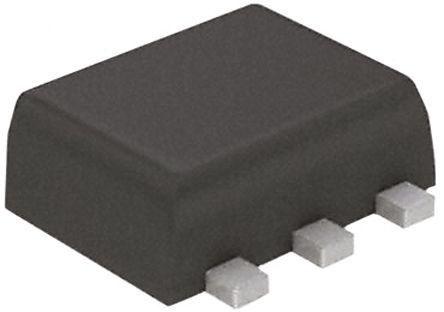

ROHM, EMD3T2R, Dual NPN + PNP Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 6-Pin SOT-563

Enrgtech Part No: ET16781804
|
Manufacturer Part No:
EMD3T2R
|
Manufacturer: ROHM

EMD3T2R ROHM, , Dual NPN + PNP Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 6-Pin SOT-563

Product Information

Base-Emitter Resistor:

10kΩ

Transistor Type:

NPN/PNP

Dimensions:

1.7 x 1.3 x 0.45mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

150 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

50 V

Package Type:

SOT-563

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

Transistor Configuration:

Dual Base

Checking for live stock

This is Dual NPN + PNP Digital Transistor 100 mA 50 V 10 kΩ Ratio Of 1 6-Pin SOT-563 manufactured by ROHM. The manufacturer part number is EMD3T2R. It has about 10kω base-emitter resistor . The transistor is a npn/pnp type. The given dimensions of the product include 1.7 x 1.3 x 0.45mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 50 v of maximum emitter base voltage. The package is a sort of sot-563. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 1 resistor ratio . The product offers dual base transistor configuration. It has a maximum operating temperature of +150 °c. It contains 6 pins. Whereas, it has a typical 10 kω input resistor .

ESD Control Selection Guide V1(Technical Reference)

EMD3, UMD3N, IMD3A, Dual Digital Transistor NPN/PNP (50V, 100mA)(Technical Reference)
