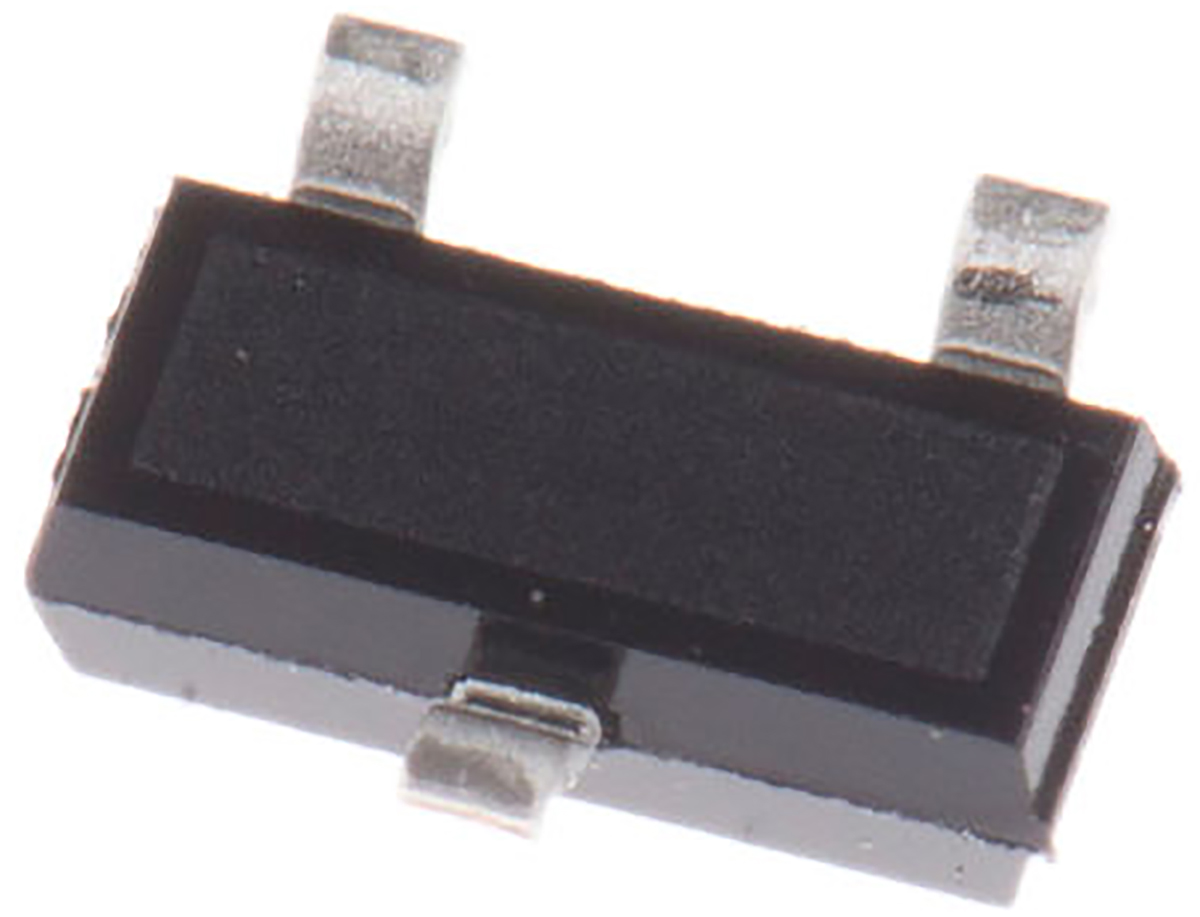

ROHM, DTC114ECAT116 NPN Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 3-Pin SOT-23

Enrgtech Part No: ET16781701
|
Manufacturer Part No:
DTC114ECAT116
|
Manufacturer: ROHM

DTC114ECAT116 ROHM, NPN Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 3-Pin SOT-23

Product Information

Base-Emitter Resistor:

10kΩ

Transistor Type:

NPN

Dimensions:

3.1 x 1.5 x 1.15mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

200 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

50 V

Package Type:

SOT-23

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

Transistor Configuration:

Common Emitter

Checking for live stock

This is NPN Digital Transistor 100 mA 50 V 10 kΩ Ratio Of 1 3-Pin SOT-23 manufactured by ROHM. The manufacturer part number is DTC114ECAT116. It has about 10kω base-emitter resistor . The transistor is a npn type. The given dimensions of the product include 3.1 x 1.5 x 1.15mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 50 v of maximum emitter base voltage. The package is a sort of sot-23. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 1 resistor ratio . The product offers common emitter transistor configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 10 kω input resistor .
