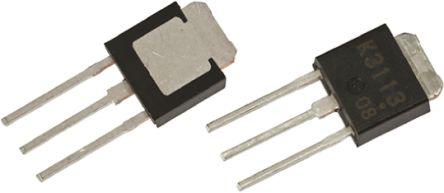

Renesas Electronics 2SC3632-AZ NPN Transistor, 1 A, 600 V, 3-Pin TO-251

2SC3632-AZ Renesas Electronics NPN Transistor, 1 A, 600 V, 3-Pin TO-251
Renesas Electronics

Product Information

Dimensions:
5.5 x 6.5 x 2.3mm
Maximum Collector Emitter Saturation Voltage:
1 V
Width:
2.3mm
Transistor Configuration:
Single
Maximum Operating Frequency:
30 MHz
Package Type:
TO-251
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
600 V
Maximum Base Emitter Saturation Voltage:
1.2 V
Maximum Emitter Base Voltage:
7 V
Length:
6.5mm
Maximum DC Collector Current:
1 A
Pin Count:
3
Minimum DC Current Gain:
5
Mounting Type:
Through Hole
Maximum Power Dissipation:
2 W
Maximum Collector Emitter Voltage:
600 V
Height:
5.5mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is NPN Transistor 1 A 600 V 3-Pin TO-251 manufactured by Renesas Electronics. The manufacturer part number is 2SC3632-AZ. The given dimensions of the product include 5.5 x 6.5 x 2.3mm. The product has a maximum 1 v collector emitter saturation voltage . Furthermore, the product is 2.3mm wide. The product offers single transistor configuration. It carries 30 mhz of maximum operating frequency. The package is a sort of to-251. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 600 v maximum collector base voltage. In addition, the product has a maximum 1.2 v base emitter saturation voltage . It features a 7 v of maximum emitter base voltage. Its accurate length is 6.5mm. Moreover, it has a maximum DC collector current of 1 a. It contains 3 pins. It features up to 5 of minimum DC current gain. The product is available in through hole configuration. Provides up to 2 w maximum power dissipation. Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 5.5mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Transistor,NPN,600V/5A(Technical Reference)
pdf icon
Package Difference between 2S*****-AZ and 2S*****-Z-AZ(Technical Reference)
