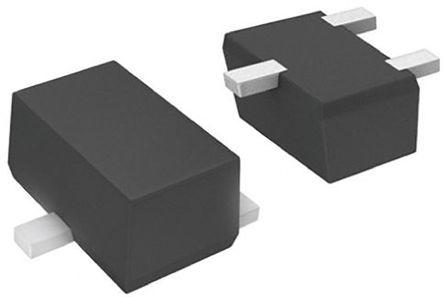

Panasonic, DRC5143Z0L NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 3-Pin SMini3 F2 B

DRC5143Z0L Panasonic, NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 3-Pin SMini3 F2 B
DRC5143Z0L
Panasonic

Product Information

Transistor Type:
NPN
Dimensions:
0.9 x 2mm
Mounting Type:
Surface Mount
Maximum Collector Emitter Voltage:
50 V
Maximum Emitter Base Voltage:
6 V
Package Type:
SMini3 F2 B
Number of Elements per Chip:
1
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Digital Transistor 100 mA 50 V 4.7 kΩ Ratio Of 0.1 3-Pin SMini3 F2 B manufactured by Panasonic. The manufacturer part number is DRC5143Z0L. The transistor is a npn type. The given dimensions of the product include 0.9 x 2mm. The product is available in surface mount configuration. Whereas features a 50 v of collector emitter voltage (max). It features a 6 v of maximum emitter base voltage. The package is a sort of smini3 f2 b. It consists of 1 elements per chip. It contains 3 pins. The product offers single transistor configuration.

pdf icon
DRC5143Z Silicon NPN epitaxial planar type Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DRC5143Z0L on website for other similar products.
We accept all major payment methods for all products including ET14099232. Please check your shopping cart at the time of order.
You can order Panasonic brand products with DRC5143Z0L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic, DRC5143Z0L NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 3-Pin SMini3 F2 B. You can also check on our website or by contacting our customer support team for further order details on Panasonic, DRC5143Z0L NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 3-Pin SMini3 F2 B.
