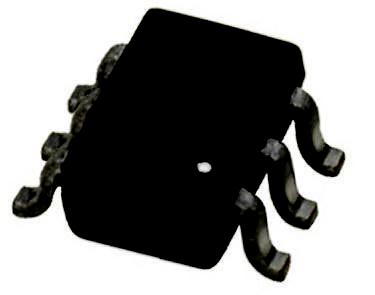

Infineon BC 817SU Dual NPN Transistor, 0.5 A, 45 V, 6-Pin SC-74

BC-817SU Infineon BC 817SU Dual NPN Transistor, 0.5 A, 45 V, 6-Pin SC-74
Infineon

Product Information

Minimum DC Current Gain:
40
Transistor Type:
NPN
Dimensions:
2.9 x 1.6 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1000 mW
Maximum Collector Emitter Saturation Voltage:
0.4 V
Maximum Collector Base Voltage:
50 V
Maximum Collector Emitter Voltage:
45 V
Maximum Base Emitter Saturation Voltage:
1.2 V
Maximum Operating Frequency:
170 MHz
Height:
1mm
Width:
1.6mm
Length:
2.9mm
Package Type:
SC-74
Number of Elements per Chip:
2
Maximum DC Collector Current:
0.5 A
Maximum Emitter Base Voltage:
5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Dual NPN Transistor 0.5 A 45 V 6-Pin SC-74 manufactured by Infineon. The manufacturer part number is BC 817SU. It features up to 40 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 2.9 x 1.6 x 1mm. The product is available in surface mount configuration. Provides up to 1000 mw maximum power dissipation. The product has a maximum 0.4 v collector emitter saturation voltage . Additionally, it has 50 v maximum collector base voltage. Whereas features a 45 v of collector emitter voltage (max). In addition, the product has a maximum 1.2 v base emitter saturation voltage . It carries 170 mhz of maximum operating frequency. In addition, the height is 1mm. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of sc-74. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 0.5 a. It features a 5 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers single transistor configuration.

pdf icon
BC817SU, NPN Silicon AF Transistor(Technical Reference)
