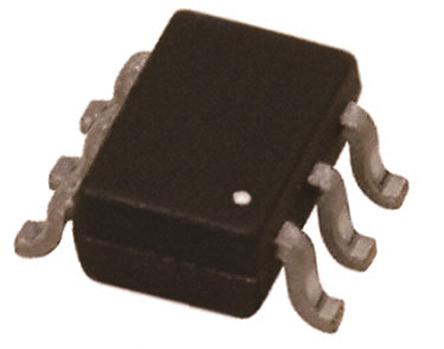

Diodes Inc IMX8-7-F Dual NPN Transistor, 50 mA, 120 V, 6-Pin SOT-26

IMX8-7-F Diodes Inc Dual NPN Transistor, 50 mA, 120 V, 6-Pin SOT-26
IMX8-7-F
DiodesZetex

Product Information

Transistor Type:
NPN
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
300 mW
Maximum Collector Base Voltage:
120 V
Maximum Collector Emitter Voltage:
120 V
Maximum Operating Frequency:
140 MHz
Maximum Emitter Base Voltage:
5 V
Package Type:
SOT-26
Number of Elements per Chip:
2
Maximum DC Collector Current:
50 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual NPN Transistor 50 mA 120 V 6-Pin SOT-26 manufactured by DiodesZetex. The manufacturer part number is IMX8-7-F. The transistor is a npn type. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. Provides up to 300 mw maximum power dissipation. Additionally, it has 120 v maximum collector base voltage. Whereas features a 120 v of collector emitter voltage (max). It carries 140 mhz of maximum operating frequency. It features a 5 v of maximum emitter base voltage. The package is a sort of sot-26. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 50 ma. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers isolated transistor configuration.

pdf icon
Dual NPN Small Signal Surface Mount Transistor Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IMX8-7-F on website for other similar products.
We accept all major payment methods for all products including ET14058488. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with IMX8-7-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc IMX8-7-F Dual NPN Transistor, 50 mA, 120 V, 6-Pin SOT-26. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc IMX8-7-F Dual NPN Transistor, 50 mA, 120 V, 6-Pin SOT-26.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058488 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058488.
Yes. We ship IMX8-7-F Internationally to many countries around the world.
