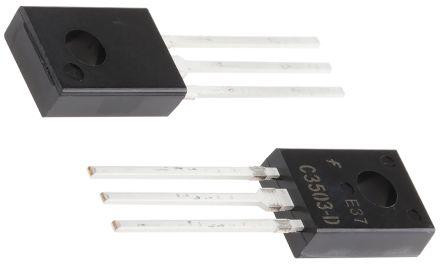

Fairchild KSC3503DSTU NPN Transistor, 0.1 A, 300 V, 3-Pin TO-126

Enrgtech Part No: ET14054794
|
Manufacturer Part No:
KSC3503DSTU
|
Manufacturer: Fairchild Semiconductor

KSC3503DSTU Fairchild NPN Transistor, 0.1 A, 300 V, 3-Pin TO-126

(0)

Product Information

Dimensions:

8 x 3.25 x 11mm

Maximum Collector Emitter Saturation Voltage:

0.6 V

Width:

3.25mm

Transistor Configuration:

Single

Maximum Operating Frequency:

1 MHz

Package Type:

TO-126

Number of Elements per Chip:

Maximum Operating Temperature:

+150 °C

Transistor Type:

NPN

Maximum Collector Base Voltage:

300 V

Maximum Base Emitter Saturation Voltage:

1 V

Maximum Emitter Base Voltage:

5 V

Checking for live stock

This is Fairchild NPN Transistor 0.1 A 300 V 3-Pin TO-126 manufactured by Fairchild Semiconductor. The manufacturer part number is KSC3503DSTU. The given dimensions of the product include 8 x 3.25 x 11mm. The product has a maximum 0.6 v collector emitter saturation voltage . Furthermore, the product is 3.25mm wide. The product offers single transistor configuration. It carries 1 mhz of maximum operating frequency. The package is a sort of to-126. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 300 v maximum collector base voltage. In addition, the product has a maximum 1 v base emitter saturation voltage . It features a 5 v of maximum emitter base voltage. Its accurate length is 8mm. Moreover, it has a maximum DC collector current of 0.1 a. It contains 3 pins. It features up to 40 of minimum DC current gain. The product is available in through hole configuration. Provides up to 7 w maximum power dissipation. Whereas features a 300 v of collector emitter voltage (max). In addition, the height is 11mm. Whereas, the minimum operating temperature of the product is -55 °c.

2SC3503/KSC3503, NPN Epitaxial Silicon Transistor Data Sheet(Technical Reference)
