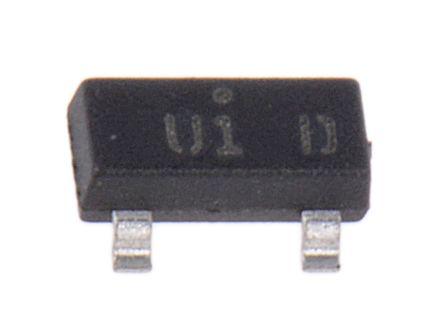

Fairchild BCX19 NPN Transistor, 0.5 A, 45 V, 3-Pin SOT-23

  • Enrgtech Part No: ET14005404
  • |
  • Manufacturer Part No:

    BCX19

  • |
  • Manufacturer: Nexperia
BCX19 Fairchild NPN Transistor, 0.5 A, 45 V, 3-Pin SOT-23
BCX19
Nexperia

Product Information

Minimum DC Current Gain:
100
Transistor Type:
NPN
Dimensions:
2.9 x 1.3 x 0.93mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
300 mW
Maximum Collector Emitter Saturation Voltage:
0.62 V
Maximum Collector Base Voltage:
50 V
Maximum Collector Emitter Voltage:
45 V
Height:
0.93mm
Width:
1.3mm
Length:
2.9mm
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum DC Collector Current:
0.5 A
Maximum Emitter Base Voltage:
5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Fairchild NPN Transistor 0.5 A 45 V 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is BCX19. It features up to 100 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 2.9 x 1.3 x 0.93mm. The product is available in surface mount configuration. Provides up to 300 mw maximum power dissipation. The product has a maximum 0.62 v collector emitter saturation voltage . Additionally, it has 50 v maximum collector base voltage. Whereas features a 45 v of collector emitter voltage (max). In addition, the height is 0.93mm. Furthermore, the product is 1.3mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, it has a maximum DC collector current of 0.5 a. It features a 5 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
BCX19, NPN Medium Power Transistor Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BCX19 on website for other similar products.
We accept all major payment methods for all products including ET14005404. Please check your shopping cart at the time of order.
You can order Nexperia brand products with BCX19 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Fairchild BCX19 NPN Transistor, 0.5 A, 45 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Fairchild BCX19 NPN Transistor, 0.5 A, 45 V, 3-Pin SOT-23.
