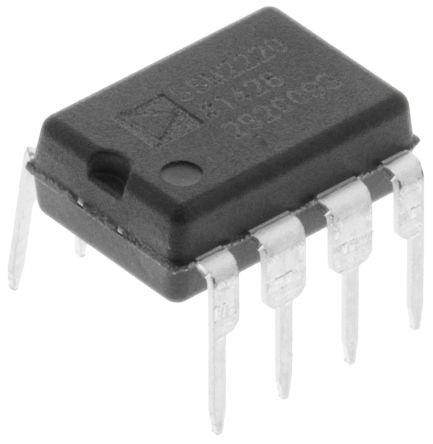

Analog Devices SSM2220PZ Dual PNP Transistor, 0.02 A, 36 V, 8-Pin PDIP

SSM2220PZ Analog Devices Dual PNP Transistor, 0.02 A, 36 V, 8-Pin PDIP
Analog Devices

Product Information

Minimum DC Current Gain:
60
Transistor Type:
PNP
Dimensions:
3.43 x 9.27 x 7.24mm
Mounting Type:
Through Hole
Maximum Collector Emitter Voltage:
36 V
Maximum Collector Emitter Saturation Voltage:
0.1 V
Maximum Collector Base Voltage:
36 V
Height:
3.43mm
Width:
7.24mm
Length:
9.27mm
Package Type:
PDIP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Maximum DC Collector Current:
0.02 A
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is Dual PNP Transistor 0.02 A 36 V 8-Pin PDIP manufactured by Analog Devices. The manufacturer part number is SSM2220PZ. It features up to 60 of minimum DC current gain. The transistor is a pnp type. The given dimensions of the product include 3.43 x 9.27 x 7.24mm. The product is available in through hole configuration. Whereas features a 36 v of collector emitter voltage (max). The product has a maximum 0.1 v collector emitter saturation voltage . Additionally, it has 36 v maximum collector base voltage. In addition, the height is 3.43mm. Furthermore, the product is 7.24mm wide. Its accurate length is 9.27mm. The package is a sort of pdip. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, it has a maximum DC collector current of 0.02 a. It has a maximum operating temperature of +85 °c. It contains 8 pins. The product offers isolated transistor configuration.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship SSM2220PZ Internationally to many countries around the world.
Yes. You can also search SSM2220PZ on website for other similar products.
We accept all major payment methods for all products including ET14004021. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14004021 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14004021.
You can order Analog Devices brand products with SSM2220PZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices SSM2220PZ Dual PNP Transistor, 0.02 A, 36 V, 8-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices SSM2220PZ Dual PNP Transistor, 0.02 A, 36 V, 8-Pin PDIP.
