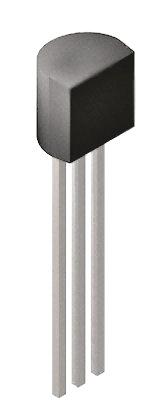

Diodes Inc APT13003EZTR-G1 NPN High Voltage Bipolar Transistor, 1.5 A, 700 V, 3-Pin TO-92

APT13003EZTR-G1 Diodes Inc NPN High Voltage Bipolar Transistor, 1.5 A, 700 V, 3-Pin TO-92
DiodesZetex

Product Information

Transistor Type:
NPN
Dimensions:
4.7 x 3.7 x 4.7mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
1.1 W
Maximum Collector Base Voltage:
10 V
Maximum Collector Emitter Voltage:
700 V
Maximum Operating Frequency:
4 (Min.) MHz
Maximum Emitter Base Voltage:
9 V
Package Type:
TO-92
Number of Elements per Chip:
1
Maximum DC Collector Current:
1.5 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc NPN High Voltage Bipolar Transistor 1.5 A 700 V 3-Pin TO-92 manufactured by DiodesZetex. The manufacturer part number is APT13003EZTR-G1. The transistor is a npn type. The given dimensions of the product include 4.7 x 3.7 x 4.7mm. The product is available in through hole configuration. Provides up to 1.1 w maximum power dissipation. Additionally, it has 10 v maximum collector base voltage. Whereas features a 700 v of collector emitter voltage (max). It carries 4 (min.) mhz of maximum operating frequency. It features a 9 v of maximum emitter base voltage. The package is a sort of to-92. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 1.5 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
APT13003E 465V NPN HIGH VOLTAGE POWER TRANSISTOR(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
