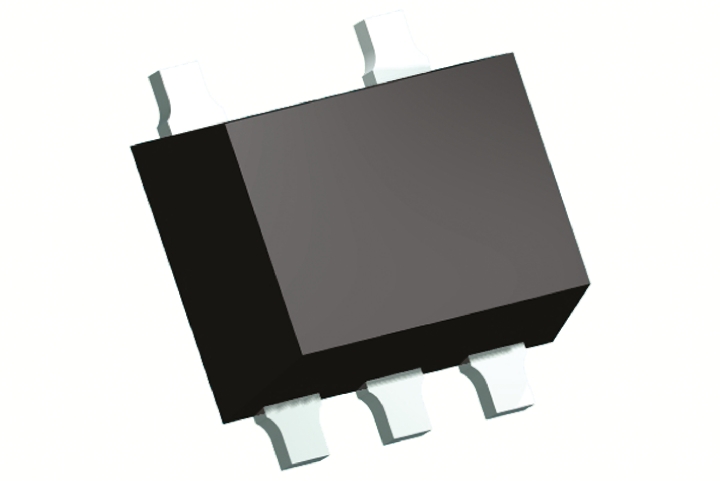

Panasonic, DMC5610L0R, Dual NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 1, 5-Pin SMini5

Enrgtech Part No: ET13944447
|
Manufacturer Part No:
DMC5610L0R
|
Manufacturer: Panasonic

DMC5610L0R Panasonic, , Dual NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 1, 5-Pin SMini5

Product Information

Transistor Type:

NPN

Dimensions:

2 x 1.25 x 0.6mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

150 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

50 V

Package Type:

SMini5 F3 B

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

Transistor Configuration:

Common Emitter

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is Dual NPN Digital Transistor 100 mA 50 V 4.7 kΩ Ratio Of 1 5-Pin SMini5 manufactured by Panasonic. The manufacturer part number is DMC5610L0R. The transistor is a npn type. The given dimensions of the product include 2 x 1.25 x 0.6mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 50 v of maximum emitter base voltage. The package is a sort of smini5 f3 b. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 1 resistor ratio . The product offers common emitter transistor configuration. It has a maximum operating temperature of +150 °c. It contains 5 pins. Whereas, it has a typical 4.7 kω input resistor .

DMC5610L Silicon NPN epitaxial planar type Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
