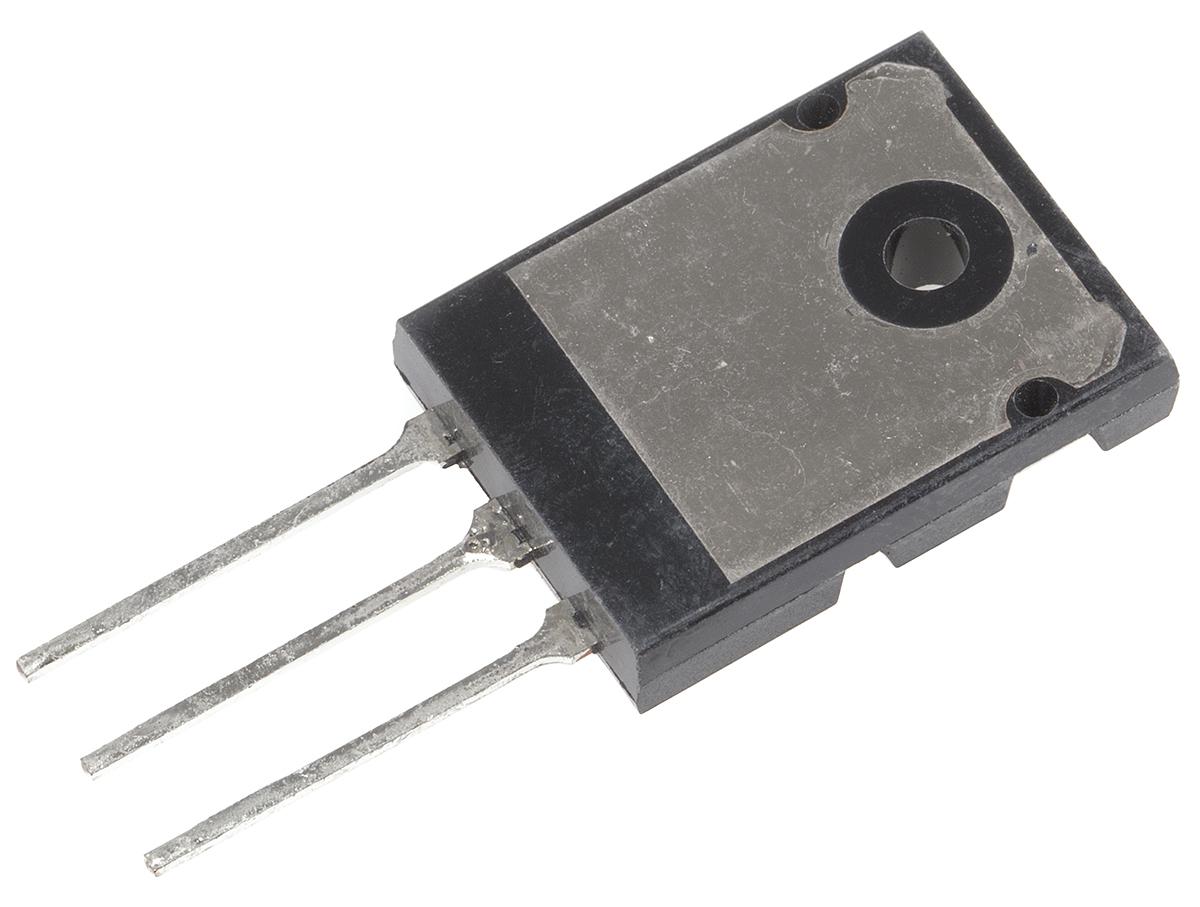

Toshiba TTA1943(Q) PNP Transistor, 15 A, 230 V, 3-Pin 2-21F1A

TTA1943-Q- Toshiba TTA1943(Q) PNP Transistor, 15 A, 230 V, 3-Pin 2-21F1A
TTA1943(Q)
TTA1943(Q)
Toshiba

Product Information

Transistor Type:
PNP
Dimensions:
20.5 x 5.2 x 26mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
150 W
Maximum Collector Base Voltage:
-230 V
Maximum Collector Emitter Voltage:
230 V
Maximum Operating Frequency:
30 MHz
Maximum Emitter Base Voltage:
-5 V
Package Type:
2-21F1A
Number of Elements per Chip:
1
Maximum DC Collector Current:
15 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Transistor 15 A 230 V 3-Pin 2-21F1A manufactured by Toshiba. The manufacturer part number is TTA1943(Q). The transistor is a pnp type. The given dimensions of the product include 20.5 x 5.2 x 26mm. The product is available in through hole configuration. Provides up to 150 w maximum power dissipation. Additionally, it has -230 v maximum collector base voltage. Whereas features a 230 v of collector emitter voltage (max). It carries 30 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of 2-21f1a. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 15 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
TTA1943, Silicon PNP Transistor for High-Speed Switching Applications(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TTA1943(Q) on website for other similar products.
We accept all major payment methods for all products including ET13864957. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TTA1943(Q) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TTA1943(Q) PNP Transistor, 15 A, 230 V, 3-Pin 2-21F1A. You can also check on our website or by contacting our customer support team for further order details on Toshiba TTA1943(Q) PNP Transistor, 15 A, 230 V, 3-Pin 2-21F1A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13864957 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13864957.
Yes. We ship TTA1943(Q) Internationally to many countries around the world.
