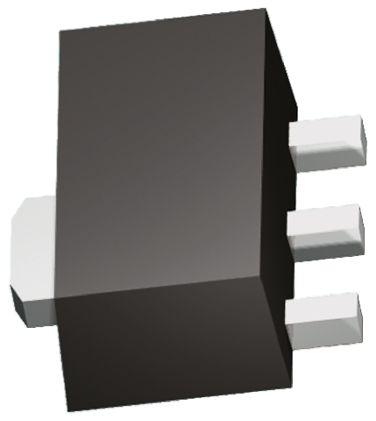

Panasonic DSA7101R0L PNP Bipolar Transistor, 0.5 A, 80 V, 3-Pin MiniP3 F2 B

DSA7101R0L Panasonic PNP Bipolar Transistor, 0.5 A, 80 V, 3-Pin MiniP3 F2 B
Panasonic

Product Information

Dimensions:
4.5 x 2.5 x 1.5mm
Maximum Collector Emitter Saturation Voltage:
-0.4 V
Width:
2.5mm
Transistor Configuration:
Single
Maximum Operating Frequency:
120 MHz
Package Type:
MiniP3 F2 B
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
PNP
Maximum Collector Base Voltage:
-80 V
Maximum Base Emitter Saturation Voltage:
-1.2 V
Maximum Emitter Base Voltage:
-5 V
Length:
4.5mm
Maximum DC Collector Current:
0.5 A
Pin Count:
3
Minimum DC Current Gain:
130
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1 W
Maximum Collector Emitter Voltage:
80 V
Height:
1.5mm
RoHs Compliant
Checking for live stock

This is PNP Bipolar Transistor 0.5 A 80 V 3-Pin MiniP3 F2 B manufactured by Panasonic. The manufacturer part number is DSA7101R0L. The given dimensions of the product include 4.5 x 2.5 x 1.5mm. The product has a maximum -0.4 v collector emitter saturation voltage . Furthermore, the product is 2.5mm wide. The product offers single transistor configuration. It carries 120 mhz of maximum operating frequency. The package is a sort of minip3 f2 b. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a pnp type. Additionally, it has -80 v maximum collector base voltage. In addition, the product has a maximum -1.2 v base emitter saturation voltage . It features a -5 v of maximum emitter base voltage. Its accurate length is 4.5mm. Moreover, it has a maximum DC collector current of 0.5 a. It contains 3 pins. It features up to 130 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. Whereas features a 80 v of collector emitter voltage (max). In addition, the height is 1.5mm.

pdf icon
DSA7101 Silicon PNP epitaxial planar type Data Sheet(Technical Reference)
