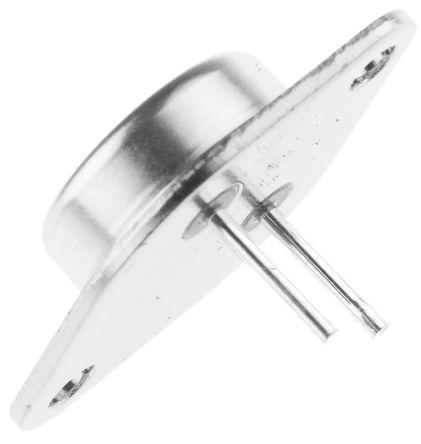

Magnatec BUP53 NPN Bipolar Transistor, 60 A, 250 V, 3-Pin TO-3

  • Enrgtech Part No: ET13831247
  • |
  • Manufacturer Part No:

    BUP53

  • |
  • Manufacturer: Magnatec
BUP53 Magnatec NPN Bipolar Transistor, 60 A, 250 V, 3-Pin TO-3
BUP53
Magnatec

Product Information

Minimum DC Current Gain:
5
Transistor Type:
NPN
Dimensions:
39.95 x 26.67 x 7.87mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
300 W
Maximum Collector Emitter Saturation Voltage:
0.8 V
Maximum Collector Emitter Voltage:
250 V
Maximum Base Emitter Saturation Voltage:
1.4 V
Height:
7.87mm
Width:
26.67mm
Length:
39.95mm
Package Type:
TO-3
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum DC Collector Current:
60 A
Maximum Emitter Base Voltage:
10 V
Maximum Operating Temperature:
+200 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Bipolar Transistor 60 A 250 V 3-Pin TO-3 manufactured by Magnatec. The manufacturer part number is BUP53. It features up to 5 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 39.95 x 26.67 x 7.87mm. The product is available in through hole configuration. Provides up to 300 w maximum power dissipation. The product has a maximum 0.8 v collector emitter saturation voltage . Whereas features a 250 v of collector emitter voltage (max). In addition, the product has a maximum 1.4 v base emitter saturation voltage . In addition, the height is 7.87mm. Furthermore, the product is 26.67mm wide. Its accurate length is 39.95mm. The package is a sort of to-3. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, it has a maximum DC collector current of 60 a. It features a 10 v of maximum emitter base voltage. It has a maximum operating temperature of +200 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
BUP53 NPN Power Transistor 60A 250V(Technical Reference)
