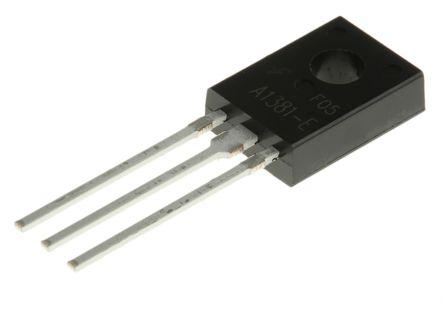

Fairchild KSA1381ESTU PNP Transistor, 0.1 A, 300 V, 3-Pin TO-126

KSA1381ESTU Fairchild PNP Transistor, 0.1 A, 300 V, 3-Pin TO-126
Fairchild Semiconductor

Product Information

Dimensions:
8 x 3.25 x 11mm
Maximum Collector Emitter Saturation Voltage:
-0.6 V
Width:
3.25mm
Transistor Configuration:
Single
Maximum Operating Frequency:
150 MHz
Package Type:
TO-126
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
PNP
Maximum Collector Base Voltage:
-300 V
Maximum Base Emitter Saturation Voltage:
-1 V
Maximum Emitter Base Voltage:
-5 V
Length:
8mm
Maximum DC Collector Current:
0.1 A
Pin Count:
3
Minimum DC Current Gain:
40
Mounting Type:
Through Hole
Maximum Power Dissipation:
7 W
Maximum Collector Emitter Voltage:
300 V
Height:
11mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Fairchild PNP Transistor 0.1 A 300 V 3-Pin TO-126 manufactured by Fairchild Semiconductor. The manufacturer part number is KSA1381ESTU. The given dimensions of the product include 8 x 3.25 x 11mm. The product has a maximum -0.6 v collector emitter saturation voltage . Furthermore, the product is 3.25mm wide. The product offers single transistor configuration. It carries 150 mhz of maximum operating frequency. The package is a sort of to-126. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a pnp type. Additionally, it has -300 v maximum collector base voltage. In addition, the product has a maximum -1 v base emitter saturation voltage . It features a -5 v of maximum emitter base voltage. Its accurate length is 8mm. Moreover, it has a maximum DC collector current of 0.1 a. It contains 3 pins. It features up to 40 of minimum DC current gain. The product is available in through hole configuration. Provides up to 7 w maximum power dissipation. Whereas features a 300 v of collector emitter voltage (max). In addition, the height is 11mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
2SA1381/KSA1381, PNP Epitaxial Silicon Transistor Data Sheet(Technical Reference)
