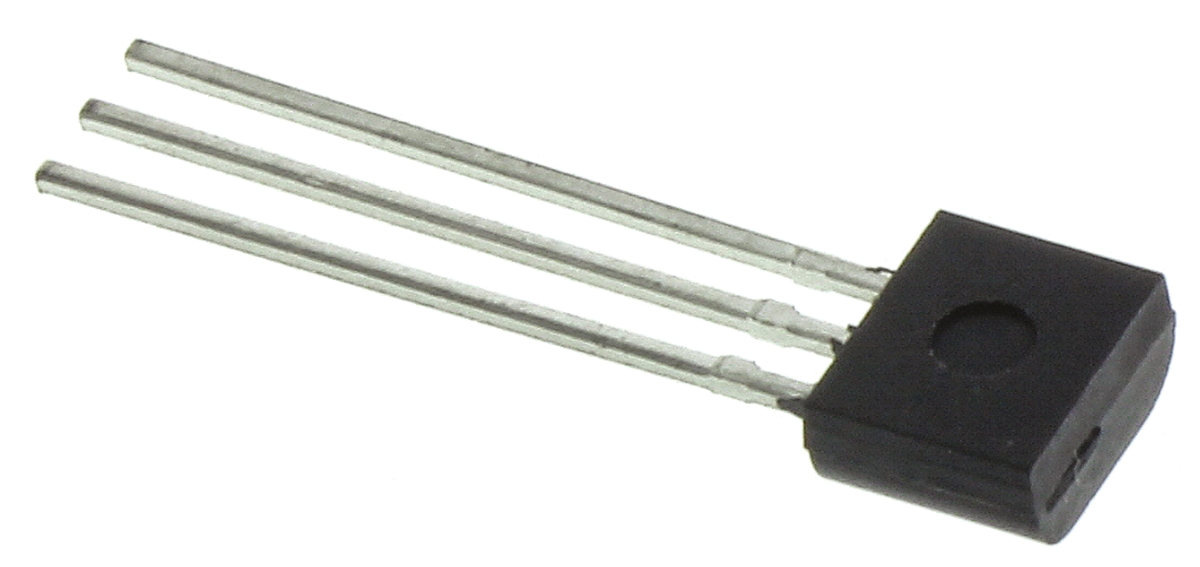

Diodes Inc ZTX951 PNP Transistor, 4 A, 60 V, 3-Pin E-Line

ZTX951 Diodes Inc PNP Transistor, 4 A, 60 V, 3-Pin E-Line
ZTX951
DiodesZetex

Product Information

Minimum DC Current Gain:
100
Transistor Type:
PNP
Dimensions:
4.01 x 4.77 x 2.41mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
1.2 W
Maximum Collector Base Voltage:
100 V
Maximum Collector Emitter Voltage:
-60 V
Maximum Operating Frequency:
120 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
TO-92
Number of Elements per Chip:
1
Maximum DC Collector Current:
-4 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc PNP Transistor 4 A 60 V 3-Pin E-Line manufactured by DiodesZetex. The manufacturer part number is ZTX951. It features up to 100 of minimum DC current gain. The transistor is a pnp type. The given dimensions of the product include 4.01 x 4.77 x 2.41mm. The product is available in through hole configuration. Provides up to 1.2 w maximum power dissipation. Additionally, it has 100 v maximum collector base voltage. Whereas features a -60 v of collector emitter voltage (max). It carries 120 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of to-92. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of -4 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ZTX951 on website for other similar products.
We accept all major payment methods for all products including ET13826849. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with ZTX951 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc ZTX951 PNP Transistor, 4 A, 60 V, 3-Pin E-Line. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc ZTX951 PNP Transistor, 4 A, 60 V, 3-Pin E-Line.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13826849 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13826849.
Yes. We ship ZTX951 Internationally to many countries around the world.
