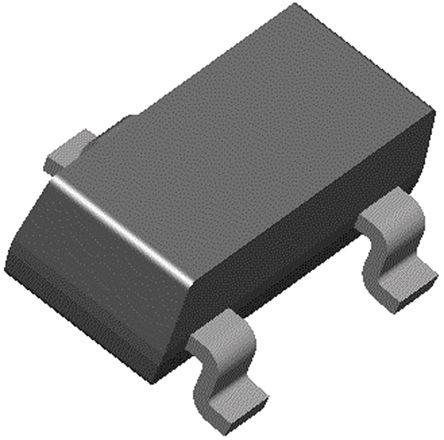

Taiwan Semiconductor TSC2411CX RFG NPN Transistor, 0.6 A, 40 V, 3-Pin SOT-23

TSC2411CX-RFG Taiwan Semiconductor TSC2411CX RFG NPN Transistor, 0.6 A, 40 V, 3-Pin SOT-23
Taiwan Semiconductor

Product Information

Dimensions:
3.1 x 1.7 x 1.2mm
Maximum Collector Emitter Saturation Voltage:
0.75 V
Width:
1.7mm
Transistor Configuration:
Single
Maximum Operating Frequency:
100 MHz
Package Type:
SOT-23
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
75 V
Maximum Base Emitter Saturation Voltage:
1.2 V
Maximum Emitter Base Voltage:
6 V
Length:
3.1mm
Maximum DC Collector Current:
0.6 A
Pin Count:
3
Minimum DC Current Gain:
82
Mounting Type:
Surface Mount
Maximum Power Dissipation:
225 mW
Maximum Collector Emitter Voltage:
40 V
Height:
1.2mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is NPN Transistor 0.6 A 40 V 3-Pin SOT-23 manufactured by Taiwan Semiconductor. The manufacturer part number is TSC2411CX RFG. The given dimensions of the product include 3.1 x 1.7 x 1.2mm. The product has a maximum 0.75 v collector emitter saturation voltage . Furthermore, the product is 1.7mm wide. The product offers single transistor configuration. It carries 100 mhz of maximum operating frequency. The package is a sort of sot-23. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 75 v maximum collector base voltage. In addition, the product has a maximum 1.2 v base emitter saturation voltage . It features a 6 v of maximum emitter base voltage. Its accurate length is 3.1mm. Moreover, it has a maximum DC collector current of 0.6 a. It contains 3 pins. It features up to 82 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 225 mw maximum power dissipation. Whereas features a 40 v of collector emitter voltage (max). In addition, the height is 1.2mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
TSC2411, General Purpose NPN Transistor(Technical Reference)
