ON Semiconductor 50A02MH-TL-E

50A02MH-TL-E ON Semiconductor
50A02MH-TL-E
50A02MH-TL-E
ET11163101
ON Semiconductor

Product Information

Transistor Type:
PNP

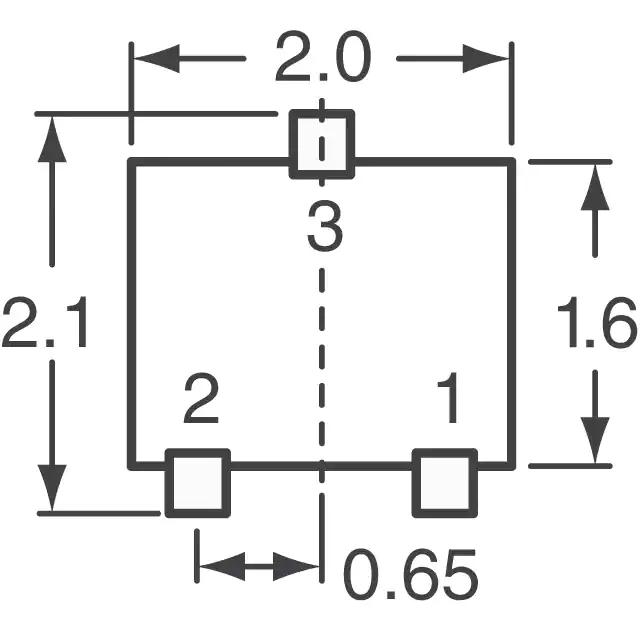

Dimensions:
2 x 2.1 x 0.85mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
600 mW
Maximum Collector Emitter Voltage:
50 V
Maximum Operating Frequency:
690 MHz
Maximum Emitter Base Voltage:
-5 V
Package Type:
MCPH
Number of Elements per Chip:
1
Maximum DC Collector Current:
500 mA
Maximum Collector Base Voltage:
-50 V
Pin Count:
3
Transistor Configuration:
Single
Manufacturer Standard Lead Time:
45 Weeks
Base Part Number:
50A02
Detailed Description:
Bipolar (BJT) Transistor PNP 50V 500mA 690MHz 600mW Surface Mount 3-MCPH
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 10mA, 2V
Transistor Type:
PNP
Frequency - Transition:
690MHz
Mounting Type:
Surface Mount
Vce Saturation (Max) @ Ib, Ic:
120mV @ 10mA, 100mA
Supplier Device Package:
3-MCPH
Voltage - Collector Emitter Breakdown (Max):
50V
Packaging:
Cut Tape (CT)
Operating Temperature:
150°C (TJ)
Power - Max:
600mW
Customer Reference:
Package / Case:
3-SMD, Flat Lead
Current - Collector (Ic) (Max):
500mA
Current - Collector Cutoff (Max):
100nA (ICBO)
Manufacturer:
ON Semiconductor
RoHs Compliant
Checking for live stock

This is manufactured by ON Semiconductor. The manufacturer part number is 50A02MH-TL-E. The transistor is a pnp type. The given dimensions of the product include 2 x 2.1 x 0.85mm. The product is available in surface mount configuration. Provides up to 600 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It carries 690 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of mcph. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 500 ma. Additionally, it has -50 v maximum collector base voltage. It contains 3 pins. The product offers single transistor configuration. It has typical 45 weeks of manufacturer standard lead time. Base Part Number: 50a02. It features bipolar (bjt) transistor pnp 50v 500ma 690mhz 600mw surface mount 3-mcph. Furthermore, 200 @ 10ma, 2v is the minimum DC current gain at given voltage. The transition frequency of the product is 690mhz. The 120mv @ 10ma, 100ma is the maximum Vce saturation. 3-mcph is the supplier device package value. The maximum collector emitter breakdown voltage of the product is 50v. In addition, cut tape (ct) is the available packaging type of the product. The product has 150°c (tj) operating temperature range. The maximum power of the product is 600mw. Moreover, the product comes in 3-smd, flat lead. The maximum collector current includes 500ma. In addition, 100na (icbo) is the maximum current at collector cutoff. The on semiconductor's product offers user-desired applications.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
50A02MH(Datasheets)
