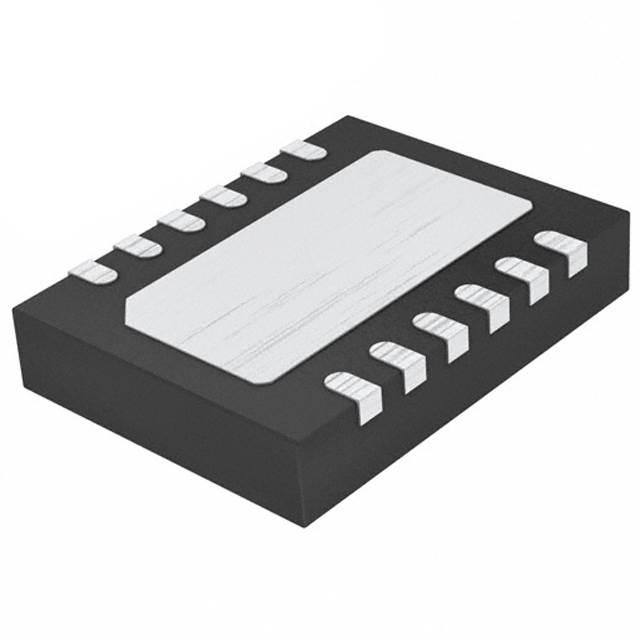

STMicroelectronics STNS01PUR

STNS01PUR STMicroelectronics
STNS01PUR
STMicroelectronics

Product Information

Dimensions:
3.15 x 3.15 x 0.75mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Output Voltage:
3.007 V
Height:
0.75mm
Typical Operating Supply Voltage:
4.55 to 5.4 V
Width:
3.15mm
Length:
3.15mm
Package Type:
DFN
Maximum Output Voltage:
3.193 V
Minimum Operating Temperature:
-40 °C
IC Type:
Battery Charge Controller IC
Battery Type:
Lithium-Ion
Maximum Output Current:
200mA
Pin Count:
12
Manufacturer Standard Lead Time:
16 Weeks
Base Part Number:
STNS01
Detailed Description:
Charger IC Lithium Ion 12-DFN (3x3)
Current - Charging:
Constant - Programmable
Mounting Type:
Surface Mount
Fault Protection:
Over Current, Over Temperature, Short Circuit
Number of Cells:
1
Supplier Device Package:
12-DFN (3x3)
Packaging:
Cut Tape (CT)
Operating Temperature:
-40°C ~ 85°C (TA)
Battery Chemistry:
Lithium Ion
Customer Reference:
Package / Case:
12-WFDFN Exposed Pad
Interface:
USB
Charge Current - Max:
220mA
Battery Pack Voltage:
4.2V
Voltage - Supply (Max):
5.4V
Manufacturer:
STMicroelectronics
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STNS01PUR. The given dimensions of the product include 3.15 x 3.15 x 0.75mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. The product features 3.007 v minimum output voltage. In addition, the height is 0.75mm. It has 4.55 to 5.4 v of typical operating supply voltage. Furthermore, the product is 3.15mm wide. Its accurate length is 3.15mm. The package is a sort of dfn. Its output voltage (maximum) includes 3.193 v. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, it includes battery charge controller ic type IC . This lithium-ion battery is comparatively much efficient than common batteries. Featuring 200ma of maximum output current. It contains 12 pins. It has typical 16 weeks of manufacturer standard lead time. Base Part Number: stns01. It features charger ic lithium ion 12-dfn (3x3). Features constant - programmable current and charging. Fault protection features include over current, over temperature, short circuit. It is comprised of 1 cells. 12-dfn (3x3) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The product has -40°c ~ 85°c (ta) operating temperature range. Features a lithium ion battery chemistry. Moreover, the product comes in 12-wfdfn exposed pad. A bespoke product is usb interface. The maximum charge current of 220ma. Features a typical battery pack voltage of 4.2v . Absolute maximum supply voltage of 5.4v. The stmicroelectronics's product offers user-desired applications.

pdf icon
STNS01, Li-Ion Linear Battery Charger with LDO (Low Dropout) Regulator(Technical Reference)
pdf icon
STNS01(Datasheets)
