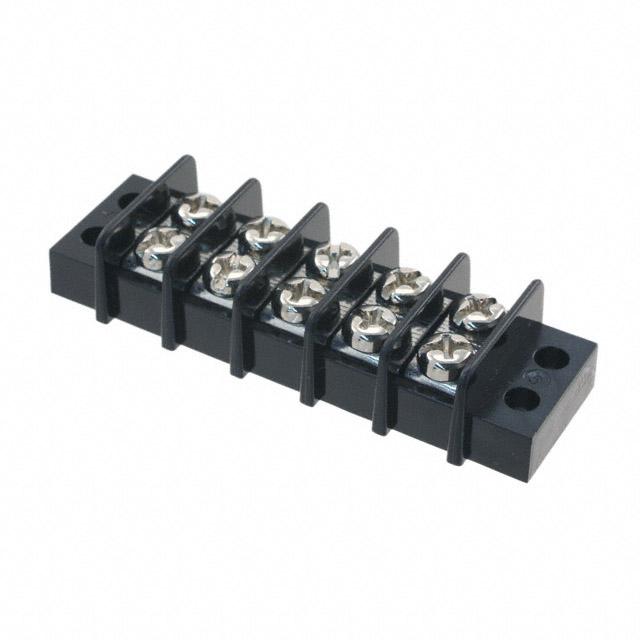

TE Connectivity AMP Connectors 1546306-5

1546306-5 TE Connectivity AMP Connectors
1546306-5
TE Connectivity AMP Connectors

Product Information

Terminal Screw Material:
Steel
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Bottom Termination:
Closed
Material - Insulation:
Thermoplastic
Terminal Block Type:
Barrier Block
Barrier Type:
2 Wall (Dual)
REACH Status:
Vendor Undefined
edacadModel:
1546306-5 Models
Wire Gauge:
12-22 AWG
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1277944
Manufacturer:
TE Connectivity AMP Connectors
Voltage Rating:
300V
Top Termination:
Screws
Terminal Screw Finish:
Nickel
Number of Wire Entries:
10
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
26 Weeks
Number of Circuits:
5
Current Rating (Amps):
20A
Features:
Flange
Mounting Type:
Chassis, Panel
Color:
Black
Series:
Buchanan
Operating Temperature:
-40°C ~ 120°C
Packaging:
Bulk
Pitch:
0.374" (9.50mm)
Base Product Number:
1546306
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1546306-5. The materials of the terminal screw include steel. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. While it has a closed bottom termination. It is designed from highly reliable thermoplastic insulating material. The product comes as a barrier block terminal block. It is a 2 wall (dual) barrier. In addition, it is vendor undefined. Moreover, the product has a wire gauge of 12-22 awg. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a nominal 300v voltage rating. It is designed with screws at top terminals. While the screw of terminal is finished with splendid nickel materials. It features 10 wire entries. Its typical moisture sensitivity level is 1 (unlimited). It has a long 26 weeks standard lead time. It integrates 5 circuits. Additionally, the product's output is 20a. The splendid features of the product include flange. The product is available in chassis, panel configuration. It has a classic black colour. The product buchanan, is a highly preferred choice for users. The product has -40°c ~ 120°c operating temperature range. In addition, bulk is the available packaging type of the product. Moreover, the product is 0.374" (9.50mm). Moreover, it corresponds to 1546306, a base product number of the product. The product is designated with the ear99 code number.
