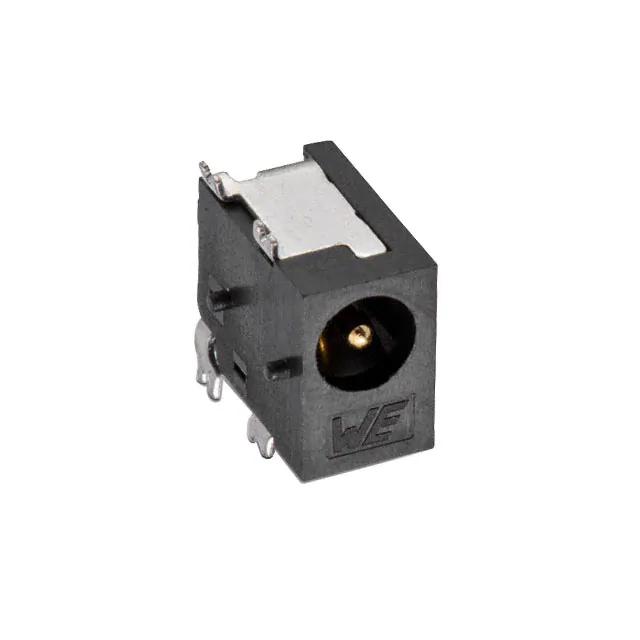

Würth Elektronik 694103107102

694103107102 Würth Elektronik
Würth Elektronik

Product Information

Manufacturer Standard Lead Time:
9 Weeks
Detailed Description:
Power Barrel Connector Jack 1.05mm ID (0.041"), 3.50mm OD (0.138") Surface Mount, Right Angle
Actual Diameter:
0.041" (1.05mm ID), 0.154" (3.90mm OD)
Voltage - Rated:
18VDC
Housing Material:
Polyamide (PA9T), Nylon 9T
Operating Temperature:
-40°C ~ 85°C
Contact Material - Plating:
Tin
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
1.05mm ID (0.041"), 3.50mm OD (0.138")
Material Flammability Rating:
UL94 V-0
Manufacturer:
Würth Elektronik
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
5A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
0.354" (9.00mm)
Series:
WR-DC
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 694103107102. It has typical 9 weeks of manufacturer standard lead time. It features power barrel connector jack 1.05mm id (0.041"), 3.50mm od (0.138") surface mount, right angle. Its actual diameter is 0.041" (1.05mm id), 0.154" (3.90mm od). It also exhibits voltage rating of 18vdc. The product also features robust polyamide (pa9t), nylon 9t housing material. The product has -40°c ~ 85°c operating temperature range. While the contact is tin. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. Internal switch options: single switch, normally closed. The product has 1.05mm id (0.041"), 3.50mm od (0.138") industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The würth elektronik's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 5a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product has 0.354" (9.00mm) mating length or depth. The product wr-dc, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product is made from sturdy copper alloy materials.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
6941xx107102 Drawing(Datasheets)
pdf icon
694103107102.pdf(3D Drawings)
