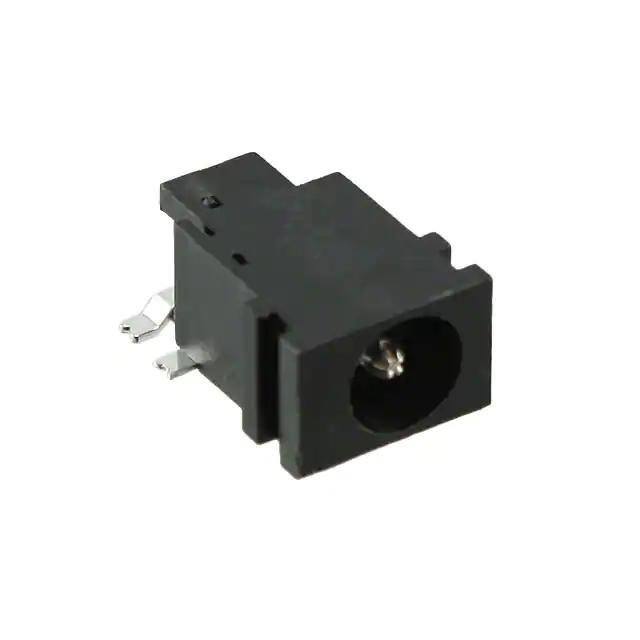

CUI Devices PJ1-021-SMT-TR

PJ1-021-SMT-TR CUI Devices
PJ1-021-SMT-TR
PJ1-021-SMT-TR
CUI Devices

Product Information

Body Orientation:
Horizontal
Mounting Type:
Surface Mount
Manufacturer Standard Lead Time:
14 Weeks
Detailed Description:
Power Barrel Connector Jack 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3 Surface Mount, Right Angle
Actual Diameter:
0.065" (1.65mm ID), 0.203" (5.15mm OD)
Voltage - Rated:
24VDC
Housing Material:
Polyamide (PA6T), Nylon 6T
Operating Temperature:
-25°C ~ 85°C
Contact Material - Plating:
Silver
Base Part Number:
PJ1-021
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
Material Flammability Rating:
UL94 V-0
Manufacturer:
CUI Devices
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
5A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
0.315" (8.00mm)
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Material:
Brass, Copper Alloy
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is PJ1-021-SMT-TR. It has horizontal body orientation. The product is available in surface mount configuration. It has typical 14 weeks of manufacturer standard lead time. It features power barrel connector jack 1.70mm id (0.067"), 4.75mm od (0.187") eiaj-3 surface mount, right angle. Its actual diameter is 0.065" (1.65mm id), 0.203" (5.15mm od). It also exhibits voltage rating of 24vdc. The product also features robust polyamide (pa6t), nylon 6t housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is silver. Base Part Number: pj1-021. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. Internal switch options: single switch, normally closed. The product has 1.70mm id (0.067"), 4.75mm od (0.187") eiaj-3 industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 5a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product has 0.315" (8.00mm) mating length or depth. In addition, cut tape (ct) is the available packaging type of the product. The product is made from sturdy brass, copper alloy materials.
