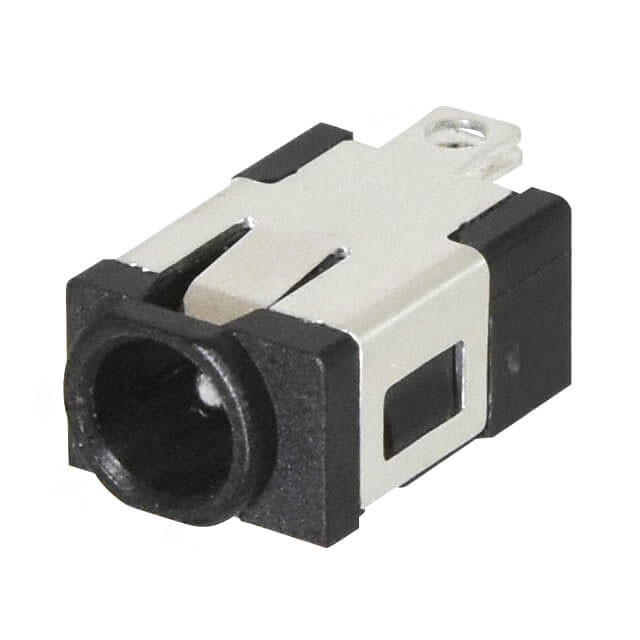

CUI Devices PJ-004CH

PJ-004CH CUI Devices
CUI Devices

Product Information

Actual Diameter:
0.039" (1.00mm ID), 0.122" (3.10mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Thread Size:
-
Operating Temperature:
-25°C ~ 85°C
Industry Recognized Mating Diameter:
1.10mm ID (0.043"), 3.00mm OD (0.118")
Internal Switch(s):
Does Not Contain Switch
Shielding:
Shielded
Voltage - Rated:
24VDC
title:
PJ-004CH
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
PJ-004CH Models
Number of Positions/Contacts:
3 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9830150
Manufacturer:
CUI Devices
Insulation Color:
-
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Solder Eyelet(s)
standardLeadTime:
24 Weeks
Current Rating (Amps):
3.5 A
Housing Material:
Polyamide (PA10T), Nylon 10T
Body Color:
Silver, Black
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Mating Length/Depth:
0.238" (6.05mm)
Series:
-
Packaging:
Tray
Contact Material - Plating:
Silver
Contact Material:
Brass, Copper Alloy
Base Product Number:
PJ-004
ECCN:
EAR99
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is PJ-004CH. Its actual diameter is 0.039" (1.00mm id), 0.122" (3.10mm od). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product has 1.10mm id (0.043"), 3.00mm od (0.118") industrial recognised mating diameter. Internal switch options: does not contain switch. Furthermore, the product is shielded with shielded. It also exhibits voltage rating of 24vdc. In addition, it is reach unaffected. The product consists of 3 conductors, 3 contacts positions or contacts. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product features solder eyelet(s) termination style. It has a long 24 weeks standard lead time. Additionally, the product's output is 3.5 a. The product also features robust polyamide (pa10t), nylon 10t housing material. The body has a classic silver, black colour. The product is available in panel mount configuration. The product has 0.238" (6.05mm) mating length or depth. In addition, tray is the available packaging type of the product. While the contact is silver. The product is made from sturdy brass, copper alloy materials. Moreover, it corresponds to pj-004, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
PJ-004CH Product Improvement 20/Dec/2023(PCN Design/Specification)
pdf icon
PJ-004CH Datasheet(Datasheets)
