Manufacturer Standard Lead Time:
6 Weeks
Detailed Description:

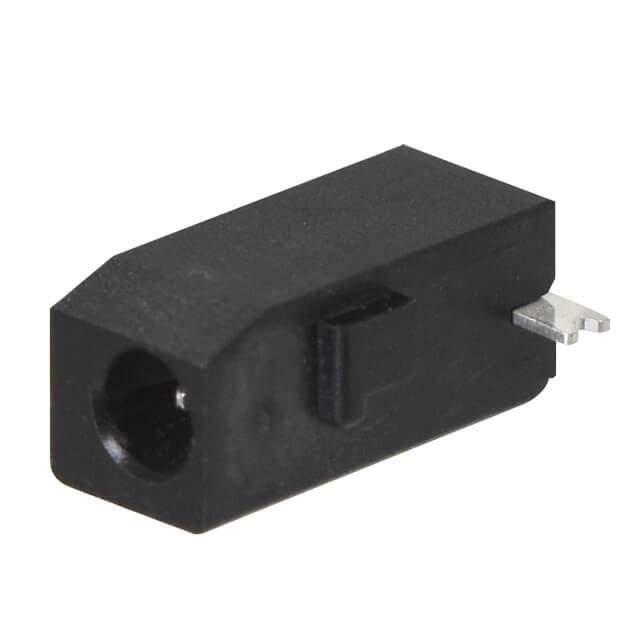

Power Barrel Connector Jack 0.65mm ID (0.026"), 2.35mm OD (0.093") Board Cutout, Surface Mount, Right Angle
Actual Diameter:
0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Housing Material:
Polyamide (PA10T), Nylon 10T
Operating Temperature:
-25°C ~ 85°C
Contact Material - Plating:
Silver
Shielding:
Shielded
Voltage - Rated:
24VDC
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
0.65mm ID (0.026"), 2.35mm OD (0.093")
Material Flammability Rating:
UL94 V-0
Manufacturer:
CUI Inc.
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
2.5A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Board Cutout, Surface Mount, Right Angle
Mating Length/Depth:
0.315" (8.00mm)
Packaging:
Cut Tape (CT)
Contact Material:
Brass, Copper Alloy
