Actual Diameter:
0.083" (2.10mm ID), 0.217" (5.50mm OD)
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
5/16"-32
Operating Temperature:
-40°C ~ 65°C
Industry Recognized Mating Diameter:
2.10mm ID (0.083"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
30VDC
title:

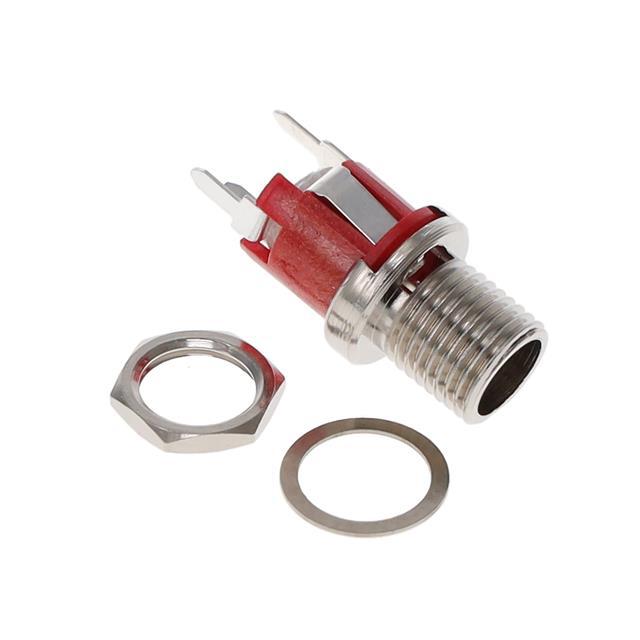

PCL721A
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
PCL721A Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
-
edacadModelUrl:
/en/models/8571721
Manufacturer:
Switchcraft Inc.
Insulation Color:
-
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
Copper Alloy
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
5 A
Housing Material:
Thermoplastic
Body Color:
Red, Silver
Ingress Protection:
-
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole
Mating Length/Depth:
0.476" (12.10mm)
Series:
-
Packaging:
Bulk
Contact Material - Plating:
Silver
Contact Material:
Copper Alloy
Base Product Number:
PCL721
ECCN:
EAR99
