Actual Diameter:
0.079" (2.00mm ID), 0.252" (6.40mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
5/16"-32
Operating Temperature:
-40°C ~ 105°C
Industry Recognized Mating Diameter:
2.00mm ID (0.079"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
24VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:

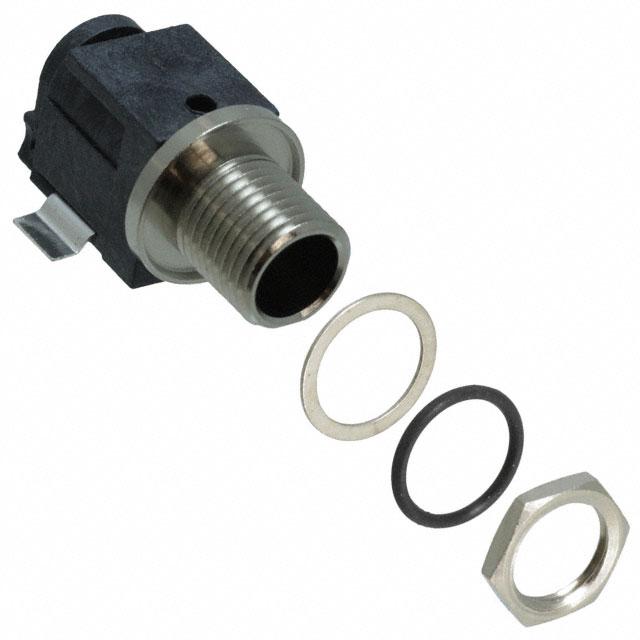

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
-
Package:
Bulk
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Copper Alloy
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
11 A
Housing Material:
Thermoplastic
Body Color:
Silver, Black
Ingress Protection:
IP68
Features:
Board Guide
Mounting Type:
Surface Mount, Through Hole
Mating Length/Depth:
-
Series:
-
Contact Material - Plating:
Silver
Contact Material:
Copper Alloy
Base Product Number:
RASH10
ECCN:
EAR99
