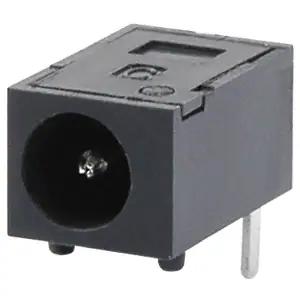

CUI Inc. PJ-036C

Enrgtech Part No: ET10860275
|
Manufacturer Part No:
PJ-036C
|
Manufacturer: CUI Inc.

Product Information

Manufacturer Standard Lead Time:

6 Weeks

Detailed Description:

Power Barrel Connector Jack 1.00mm ID (0.039"), 3.40mm OD (0.134") Through Hole, Right Angle

Actual Diameter:

0.039" (1.00mm ID), 0.150" (3.80mm OD)

Number of Positions/Contacts:

2 Conductors, 3 Contacts

Housing Material:

Polyamide (PA66), Nylon 6/6

Operating Temperature:

-25°C ~ 85°C

Contact Material - Plating:

Tin

Shielding:

Unshielded

Voltage - Rated:

24VDC

Internal Switch(s):

Single Switch, Normally Closed

Industry Recognized Mating Diameter:

1.00mm ID (0.039"), 3.40mm OD (0.134")

Material Flammability Rating:

UL94 V-0

Checking for live stock

This is manufactured by CUI Inc.. The manufacturer part number is PJ-036C. It has typical 6 weeks of manufacturer standard lead time. It features power barrel connector jack 1.00mm id (0.039"), 3.40mm od (0.134") through hole, right angle. Its actual diameter is 0.039" (1.00mm id), 0.150" (3.80mm od). The product consists of 2 conductors, 3 contacts positions or contacts. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is tin. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 24vdc. Internal switch options: single switch, normally closed. The product has 1.00mm id (0.039"), 3.40mm od (0.134") industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui inc.'s product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 2a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product has 0.260" (6.60mm) mating length or depth. In addition, bulk is the available packaging type of the product. The product is made from sturdy brass, copper alloy materials.

Plating 23/Jan/2019(PCN Design/Specification)

PJ-036C(Datasheets)

483 (UK2011-EN PDF)(Catalog Page)
