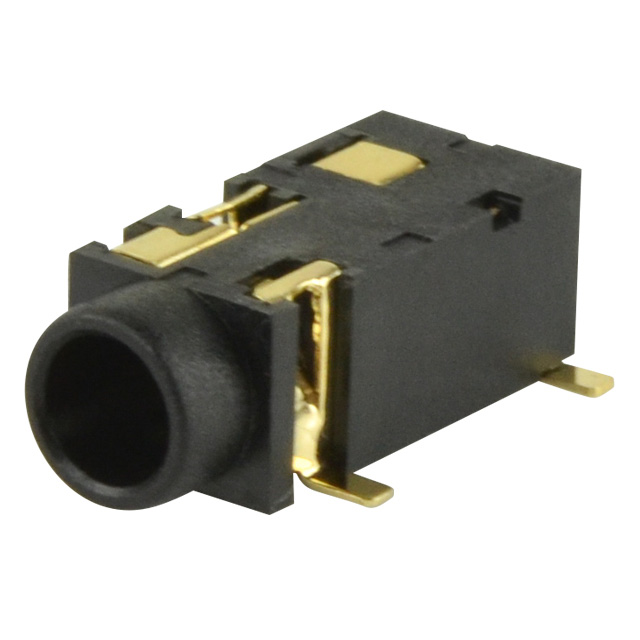

CUI Devices SJ2-35043C-SMT-TR

SJ2-35043C-SMT-TR CUI Devices
CUI Devices

Product Information

Actual Diameter:
0.142" (3.60mm)
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-25°C ~ 85°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Single Switch
Shielding:
Unshielded
Voltage - Rated:
12VDC
Cable Opening:
-
title:
SJ2-35043C-SMT-TR
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
SJ2-35043C-SMT-TR Models
Signal Lines:
Stereo (4 Conductor, TRRS)
Number of Positions/Contacts:
4 Conductors, 5 Contacts
edacadModelUrl:
/en/models/6619592
Insulation Color:
-
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
Current Rating (Amps):
1 A
Housing Material:
Polyamide (PA10T), Nylon 10T
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
0.551" (14.00mm)
Series:
SJ2
Packaging:
Cut Tape (CT)
Contact Material - Plating:
Copper Alloy
Contact Material:
Copper Alloy
Base Product Number:
SJ2-35
ECCN:
EAR99
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is SJ2-35043C-SMT-TR. Its actual diameter is 0.142" (3.60mm). It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: single switch. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. Features stereo (4 conductor, trrs) signal lines. The product consists of 4 conductors, 5 contacts positions or contacts. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 1 a. The product also features robust polyamide (pa10t), nylon 10t housing material. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product has 0.551" (14.00mm) mating length or depth. The product sj2, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. While the contact is copper alloy. The product is made from sturdy copper alloy materials. Moreover, it corresponds to sj2-35, a base product number of the product. The product is designated with the ear99 code number.
