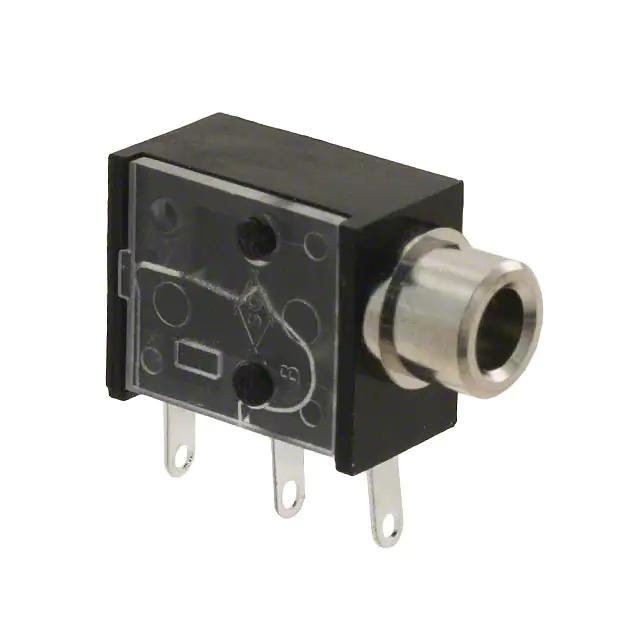

CUI Devices MJ-3502

MJ-3502 CUI Devices
MJ-3502
MJ-3502
ET18630170
ET18630170
CUI Devices

Product Information

Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Horizontal
Type:
Jack Connector
Size:
3.5 mm
Manufacturer Standard Lead Time:
12 Weeks
Detailed Description:
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Actual Diameter:
0.142" (3.60mm)
Voltage - Rated:
12VDC
Thread Size:
M6
Operating Temperature:
-20°C ~ 85°C
Panel Hole Size:
0.236" (5.99mm)
Internal Switch(s):
Single Switch
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Includes:
2 pcs - 1 Connector, 1 Nut
Signal Lines:
Mono
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Manufacturer:
CUI Devices
Contact Material - Plating:
Silver
Gender:
Female
Connector Type:
Phone Jack
Body Material:
Brass
Termination:
Solder Eyelet(s)
Current Rating (Amps):
1A
Housing Material:
Polyoxymethylene (POM)
Body Color:
Silver, Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Packaging:
Bag
Customer Reference:
Contact Material:
Brass, Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is MJ-3502. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has horizontal body orientation. It comes in jack connector configuration. The product is available in 3.5 mm size. It has typical 12 weeks of manufacturer standard lead time. It features 3.50mm (0.141", 1/8", mini plug) - headphone phone jack mono connector solder eyelet(s). Its actual diameter is 0.142" (3.60mm). It also exhibits voltage rating of 12vdc. It has a typical thread size of m6. The product has -20°c ~ 85°c operating temperature range. The product features a panel hole size of 0.236" (5.99mm). Internal switch options: single switch. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. The product is also supplied with 2 pcs - 1 connector, 1 nut. Features mono signal lines. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. The cui devices's product offers user-desired applications. While the contact is silver. phone jack Connector type offer robust functionality. The product's body is nicely designed from brass materials. The product features solder eyelet(s) termination style. Additionally, the product's output is 1a. The product also features robust polyoxymethylene (pom) housing material. The body has a classic silver, black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. In addition, bag is the available packaging type of the product. The product is made from sturdy brass, phosphor bronze materials.

pdf icon
Datasheet - MJ-3502(Technical Reference)
pdf icon
MJ-3502(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MJ-3502 on website for other similar products.
We accept all major payment methods for all products including ET18630170. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with MJ-3502 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Barrel - Audio Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices MJ-3502. You can also check on our website or by contacting our customer support team for further order details on CUI Devices MJ-3502.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18630170 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18630170.
Yes. We ship MJ-3502 Internationally to many countries around the world.
