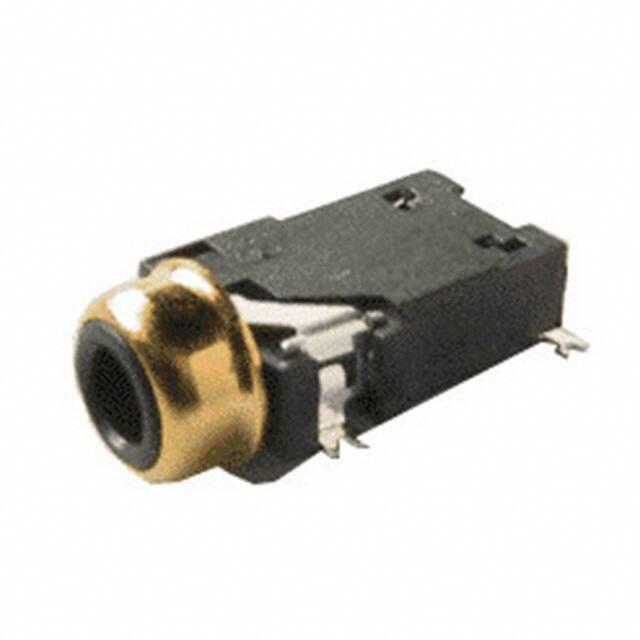

CUI Devices SJ-42525TS-SMT-TR

SJ-42525TS-SMT-TR CUI Devices
CUI Devices

Product Information

Detailed Description:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Actual Diameter:
0.102" (2.60mm)
Number of Positions/Contacts:
4 Conductors, 5 Contacts
Housing Material:
Polybutylene Terephthalate (PBT)
Contact Material - Plating:
Silver
Shielding:
Unshielded
Voltage - Rated:
16VDC
Internal Switch(s):
Single Switch
Signal Lines:
Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Manufacturer:
CUI Devices
Gender:
Female
Connector Type:
Phone Jack
Termination:
Solder
Current Rating (Amps):
300mA
Body Color:
Gold, Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Series:
SJ
Packaging:
Tape & Reel (TR)
Customer Reference:
Contact Material:
Brass, Copper Alloy, Phosphor Bronze
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is SJ-42525TS-SMT-TR. It features 2.50mm (0.094", 3/32", sub mini, miniature) - headphone phone jack stereo (4 conductor, trrs) connector solder. Its actual diameter is 0.102" (2.60mm). The product consists of 4 conductors, 5 contacts positions or contacts. The product also features robust polybutylene terephthalate (pbt) housing material. While the contact is silver. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 16vdc. Internal switch options: single switch. Features stereo (4 conductor, trrs) signal lines. The product has 2.50mm (0.094", 3/32", sub mini, miniature) - headphone industrial recognised mating diameter. The cui devices's product offers user-desired applications. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 300ma. The body has a classic gold, black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product sj, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is made from sturdy brass, copper alloy, phosphor bronze materials.

pdf icon
SJ-4252y Series 31/Jan/2018(PCN Obsolescence/ EOL)
pdf icon
SJ-4252x-SMT(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SJ-42525TS-SMT-TR on website for other similar products.
We accept all major payment methods for all products including ET18498025. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with SJ-42525TS-SMT-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Barrel - Audio Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices SJ-42525TS-SMT-TR. You can also check on our website or by contacting our customer support team for further order details on CUI Devices SJ-42525TS-SMT-TR.
