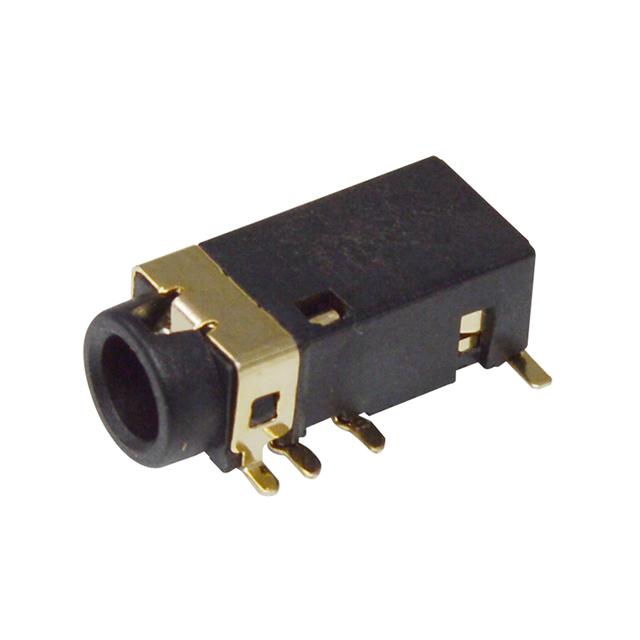

Kycon, Inc. STX-3542-5N-G-TR

STX-3542-5N-G-TR Kycon, Inc.
Kycon, Inc.

Product Information

Actual Diameter:
0.142" (3.60mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-25°C ~ 70°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Does Not Contain Switch
Shielding:
Unshielded
Voltage - Rated:
12VDC
Cable Opening:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
STX-3542-5N-G-TR Models
Signal Lines:
5 Conductor (TRRRS)
Number of Positions/Contacts:
5 Conductors, 5 Contacts
edacadModelUrl:
/en/models/10244022
Insulation Color:
-
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
Current Rating (Amps):
1 A
Housing Material:
Thermoplastic
Body Color:
Black
Features:
-
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
-
Series:
STX-3542
Packaging:
Tape & Reel (TR)
Contact Material - Plating:
Gold
Contact Material:
Phosphor Bronze
Base Product Number:
STX
ECCN:
EAR99
Checking for live stock

This is manufactured by Kycon, Inc.. The manufacturer part number is STX-3542-5N-G-TR. Its actual diameter is 0.142" (3.60mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 70°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: does not contain switch. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. Features 5 conductor (trrrs) signal lines. The product consists of 5 conductors, 5 contacts positions or contacts. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 1 a. The product also features robust thermoplastic housing material. The body has a classic black colour. The product is available in surface mount, right angle configuration. The product stx-3542, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. While the contact is gold. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to stx, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
STX-3542-5N-G-TR(Datasheets)
