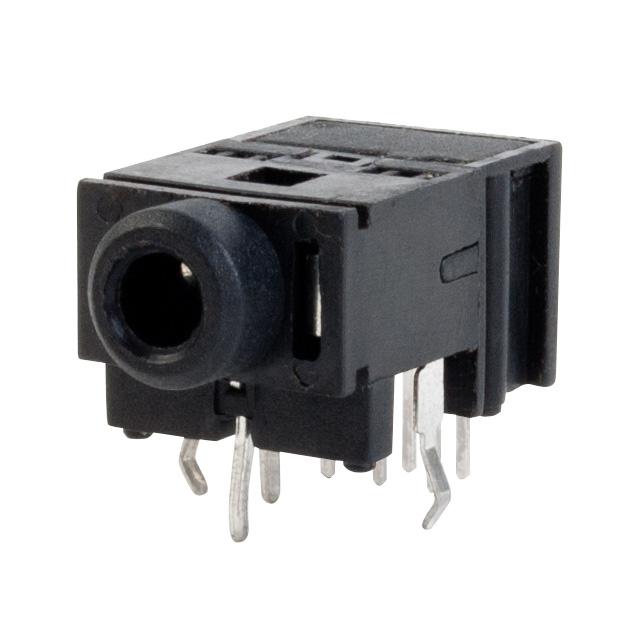

CUI Devices SJ-3589ANG

Enrgtech Part No: ET18348081
|
Manufacturer Part No:
SJ-3589ANG
|
Manufacturer: CUI Devices

Product Information

Manufacturer Standard Lead Time:

11 Weeks

Detailed Description:

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder

Actual Diameter:

0.142" (3.60mm)

Voltage - Rated:

12VDC

Housing Material:

Polybutylene Terephthalate (PBT)

Operating Temperature:

-25°C ~ 85°C

Internal Switch(s):

DPDT Switch

Shielding:

Unshielded

Number of Positions/Contacts:

3 Conductors, 6 Contacts

Contact Material - Plating:

Tin

Signal Lines:

Stereo (3 Conductor, TRS)

Industry Recognized Mating Diameter:

3.50mm (0.141", 1/8", Mini Plug) - Headphone

Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is SJ-3589ANG. It has typical 11 weeks of manufacturer standard lead time. It features 3.50mm (0.141", 1/8", mini plug) - headphone phone jack stereo (3 conductor, trs) connector solder. Its actual diameter is 0.142" (3.60mm). It also exhibits voltage rating of 12vdc. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -25°c ~ 85°c operating temperature range. Internal switch options: dpdt switch. Furthermore, the product is shielded with unshielded. The product consists of 3 conductors, 6 contacts positions or contacts. While the contact is tin. Features stereo (3 conductor, trs) signal lines. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. The cui devices's product offers user-desired applications. In addition, black is the insulation color of the product. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product's body is nicely designed from polyamide (pa66), nylon 6/6 materials. The product features solder termination style. Additionally, the product's output is 1a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product has 0.551" (14.00mm) mating length or depth. The product sj, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product is made from sturdy brass; copper alloy materials.

Multiple Devices Plating 19/Sep/2014(PCN Design/Specification)

SJ-358xNG Datasheet(Datasheets)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search SJ-3589ANG on website for other similar products.

We accept all major payment methods for all products including ET18348081. Please check your shopping cart at the time of order.

You can order CUI Devices brand products with SJ-3589ANG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Barrel - Audio Connectors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of CUI Devices SJ-3589ANG. You can also check on our website or by contacting our customer support team for further order details on CUI Devices SJ-3589ANG.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET18348081 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18348081.

Yes. We ship SJ-3589ANG Internationally to many countries around the world.
