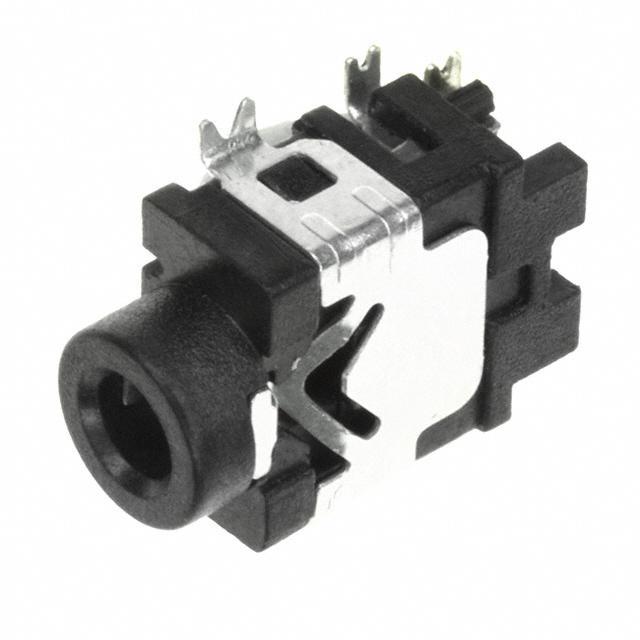

CUI Inc. SJ-42536-SMT-1

SJ-42536-SMT-1 CUI Inc.
SJ-42536-SMT-1
CUI Inc.

Product Information

Detailed Description:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Actual Diameter:
0.102" (2.60mm)
Number of Positions/Contacts:
4 Conductors, 6 Contacts
Operating Temperature:
-20°C ~ 85°C
Dielectric Material:
Polyamide (PA6T), Nylon 6T
Contact Material - Plating:
Silver
Shielding:
Unshielded
Voltage - Rated:
16VDC
Internal Switch(s):
Two Switches
Signal Lines:
Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Manufacturer:
CUI Inc.
Gender:
Female
Connector Type:
Phone Jack
Termination:
Solder
Current Rating (Amps):
300mA
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Series:
SJ
Packaging:
Bulk
Contact Material:
Brass; Copper Alloy
Checking for live stock

This is manufactured by CUI Inc.. The manufacturer part number is SJ-42536-SMT-1. It features 2.50mm (0.094", 3/32", sub mini, miniature) - headphone phone jack stereo (4 conductor, trrs) connector solder. Its actual diameter is 0.102" (2.60mm). The product consists of 4 conductors, 6 contacts positions or contacts. The product has -20°c ~ 85°c operating temperature range. Moreover, the product is constructed from highly polyamide (pa6t), nylon 6t dielectric material. While the contact is silver. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 16vdc. Internal switch options: two switches. Features stereo (4 conductor, trrs) signal lines. The product has 2.50mm (0.094", 3/32", sub mini, miniature) - headphone industrial recognised mating diameter. The cui inc.'s product offers user-desired applications. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 300ma. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product sj, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is made from sturdy brass; copper alloy materials.

pdf icon
SJ-42536-SMT(Datasheets)
pdf icon
482 (UK2011-EN PDF)(Catalog Page)
