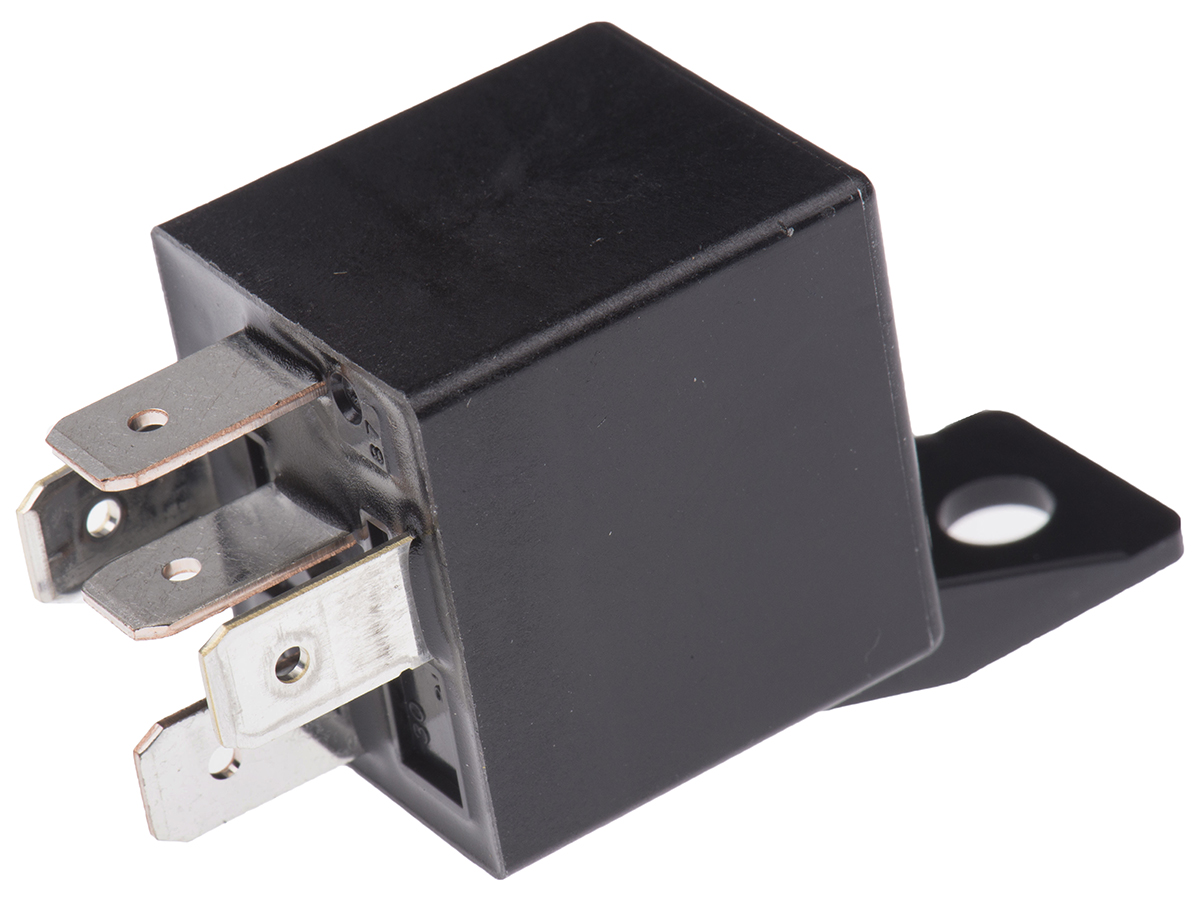

Panasonic SPDT Automotive Relay PCB Mount, 24V dc Coil, 40 A

CB1-M-24V Panasonic SPDT Automotive Relay PCB Mount, 24V dc Coil, 40 A
CB1-M-24V
Panasonic

Product Information

Life:
50000 Operations
Maximum Switching Voltage DC:
14V
Mounting Type:
PCB Mount
Coil Power:
1.8W
Maximum Operating Temperature:
+85°C
Switching Current:
20A
Coil Voltage:
24V dc
Depth:
22mm
Height:
25mm
Length:
26mm
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPDT
Isolation Coil To Contact:
500V rms
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
Quick Connect
Coil Resistance:
320Ω
RoHs Compliant
Checking for live stock

This is SPDT Automotive Relay PCB Mount 24V dc Coil 40 A manufactured by Panasonic. The manufacturer part number is CB1-M-24V. It is capable of doing 50000 operations in a lifetime . While it carries 14v of maximum DC switching voltage. The product is available in pcb mount configuration. Robust coil power of 1.8w. It has a maximum operating temperature of +85°c. It is integrated with 20a switching current. The coil voltage of the product is 24v dc. The product comes in 22mm depth. In addition, the height is 25mm. Its accurate length is 26mm. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spdt configuration. The product has 500v rms isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a quick connect type. It holds up to 320ω coil resistance.

pdf icon
CB Relays Data Sheet(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search CB1-M-24V on website for other similar products.
We accept all major payment methods for all products including ET13944394. Please check your shopping cart at the time of order.
You can order Panasonic brand products with CB1-M-24V directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Automotive Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic SPDT Automotive Relay PCB Mount, 24V dc Coil, 40 A. You can also check on our website or by contacting our customer support team for further order details on Panasonic SPDT Automotive Relay PCB Mount, 24V dc Coil, 40 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13944394 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13944394.
Yes. We ship CB1-M-24V Internationally to many countries around the world.
