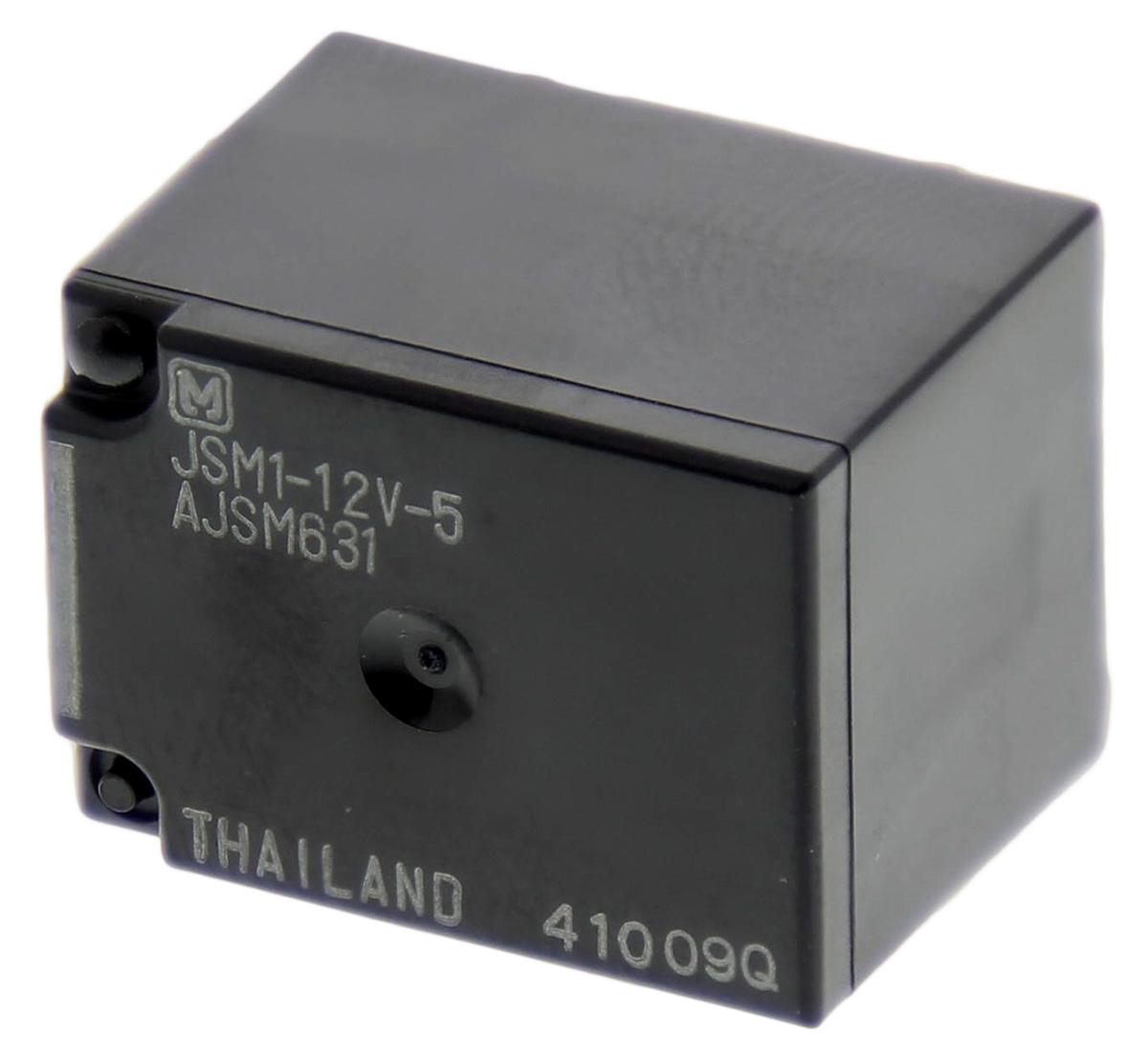

Panasonic SPDT PCB Mount Automotive Relay, 12V dc Coil, 15 A

JSM1125 Panasonic SPDT PCB Mount Automotive Relay, 12V dc Coil, 15 A
JSM1125
Panasonic

Product Information

Maximum Switching Voltage DC:
16V dc
Mounting Type:
PCB Mount
Coil Power:
640mW
Series:
JS-M
Switching Current:
15A
Coil Voltage:
12V dc
Length:
22mm
Height:
16.4mm
Depth:
16mm
Maximum Switching Power DC:
160 W
Isolation Coil To Contact:
1.5kV
Contact Configuration:
SPDT
Number of Poles:
1
Terminal Type:
Through Hole
Coil Resistance:
225 Ω
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Automotive Relay 12V dc Coil 15 A manufactured by Panasonic. The manufacturer part number is JSM1125. While it carries 16v dc of maximum DC switching voltage. The product is available in pcb mount configuration. Robust coil power of 640mw. The product js-m, is a highly preferred choice for users. It is integrated with 15a switching current. The coil voltage of the product is 12v dc. Its accurate length is 22mm. In addition, the height is 16.4mm. The product comes in 16mm depth. It bears a maximum 160 w of DC switching power. The product has 1.5kv isolation coil to contact. The contact is equipped with spdt configuration. It has equipped with 1 poles. The terminal is a through hole type. It holds up to 225 ω coil resistance.

pdf icon
JS-M Relays Automotive Ultra Miniature Power Type(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search JSM1125 on website for other similar products.
We accept all major payment methods for all products including ET13860350. Please check your shopping cart at the time of order.
You can order Panasonic brand products with JSM1125 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Automotive Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic SPDT PCB Mount Automotive Relay, 12V dc Coil, 15 A. You can also check on our website or by contacting our customer support team for further order details on Panasonic SPDT PCB Mount Automotive Relay, 12V dc Coil, 15 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13860350 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13860350.
Yes. We ship JSM1125 Internationally to many countries around the world.
