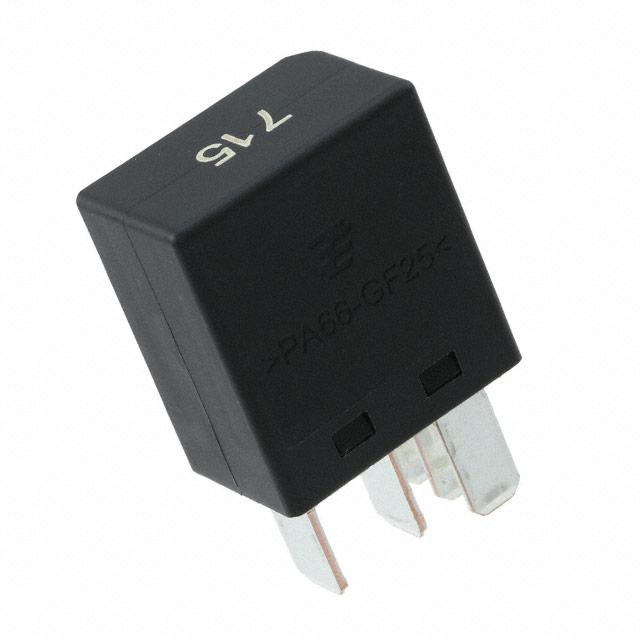

TE Connectivity Potter & Brumfield Relays V23074A1002A403

V23074A1002A403 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In, Quick Connect - Multiple Sizes
Operating Temperature:
-40°C ~ 125°C
Coil Resistance:
430 Ohms
Coil Type:
Non Latching
Switching Voltage:
24VDC - Nom
Coil Power:
1.34W
REACH Status:
REACH Unaffected
edacadModel:
V23074A1002A403 Models
edacadModelUrl:
/en/models/5399502
Must Operate Voltage:
14.4 VDC
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Must Release Voltage:
3.6 VDC
standardLeadTime:
28 Weeks
Contact Rating (Current):
30 A
Features:
Resistor
Mounting Type:
Socketable
Series:
Micro Relay A
ECCN:
EAR99
Base Product Number:
V23074
Contact Material:
Silver Alloy
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is V23074A1002A403. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has plug in, quick connect - multiple sizes terminal style. The product has -40°c ~ 125°c operating temperature range. It holds up to 430 ohms coil resistance. The coil is a non latching type. The product's switching voltage is 24vdc - nom. Robust coil power of 1.34w. In addition, it is reach unaffected. On the other hand, 14.4 vdc is the given crucial/must operating voltage. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). While the must release voltage is a 3.6 vdc. It has a long 28 weeks standard lead time. It has a contact current rating of 30 a. The splendid features of the product include resistor. The product is available in socketable configuration. The product micro relay a, is a highly preferred choice for users. The product is designated with the ear99 code number. Moreover, it corresponds to v23074, a base product number of the product. The product is made from sturdy silver alloy materials.

pdf icon
Additional source 26/SEP/2022(PCN Assembly/Origin)
pdf icon
3-1393292-8(Datasheets)
pdf icon
Multiple Devices Document Clarification 11/Jan/2019(PCN Design/Specification)
