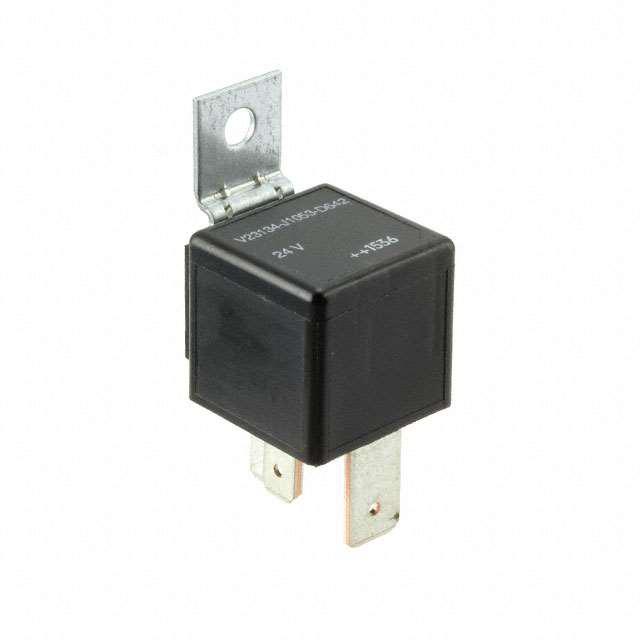

TE Connectivity Potter & Brumfield Relays 1-1393304-1

1-1393304-1 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In, Quick Connect - Multiple Sizes
Operating Temperature:
-40°C ~ 125°C
Coil Resistance:
324 Ohms
Coil Type:
Non Latching
Switching Voltage:
24VDC - Nom
Coil Power:
1.8W
REACH Status:
REACH Unaffected
edacadModel:
1-1393304-1 Models
edacadModelUrl:
/en/models/5338685
Must Operate Voltage:
14.4 VDC
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
7 ms
Must Release Voltage:
3.2 VDC
standardLeadTime:
34 Weeks
Contact Rating (Current):
70 A
Features:
-
Mounting Type:
Chassis Mount
Series:
F7
Release Time:
2 ms
Contact Material:
Silver Alloy
Base Product Number:
1393304
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is 1-1393304-1. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has plug in, quick connect - multiple sizes terminal style. The product has -40°c ~ 125°c operating temperature range. It holds up to 324 ohms coil resistance. The coil is a non latching type. The product's switching voltage is 24vdc - nom. Robust coil power of 1.8w. In addition, it is reach unaffected. On the other hand, 14.4 vdc is the given crucial/must operating voltage. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 7 ms. While the must release voltage is a 3.2 vdc. It has a long 34 weeks standard lead time. It has a contact current rating of 70 a. The product is available in chassis mount configuration. The product f7, is a highly preferred choice for users. While 2 ms is its release time. The product is made from sturdy silver alloy materials. Moreover, it corresponds to 1393304, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs - tooling 17/NOV/2020(PCN Assembly/Origin)
pdf icon
1-1393304-1(Datasheets)
