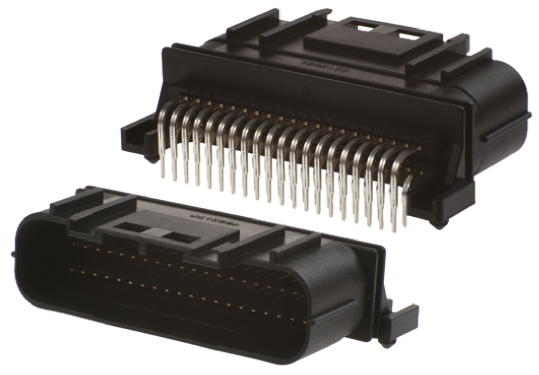

JAE MX23A Series, 2 Row 40 Way Through Hole Plug Header, with Solder Termination Method

  • Enrgtech Part No: ET13920765
  • |
  • Manufacturer Part No:

    MX23A40NF1

  • |
  • Manufacturer: JAE
MX23A40NF1 JAE MX23A Series, 2 Row 40 Way Through Hole Plug Header, with Solder Termination Method
JAE

Product Information

Current Rating:
3A
Minimum Operating Temperature:
-40°C
Mounting Type:
Through Hole
Gender:
Male
Colour:
Black
Termination Method:
Solder
Height:
16.4mm
Housing Material:
Glass Fibre Reinforced PBT
Width:
65.5mm
Depth:
33.3mm
Number of Rows:
2
Contact Plating:
Tin
Series:
MX23A
Number of Contacts:
40
Type:
Header
Maximum Operating Temperature:
+125°C
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is MX23A Series 2 Row 40 Way Through Hole Plug Header with Solder Termination Method manufactured by JAE. The manufacturer part number is MX23A40NF1. The product has a current rating of 3a. Whereas, the minimum operating temperature of the product is -40°c. The product is available in through hole configuration. In addition, male is the available "Gender" of the product. It has a decent black colour. It allows solder termination method. In addition, the height is 16.4mm. The product also features robust glass fibre reinforced pbt housing material. Furthermore, the product is 65.5mm wide. The product comes in 33.3mm depth. It comes in 2 of rows. The high-quality tin is used as contact plating material. The product mx23a, is a highly preferred choice for users. The product contains 40 contacts. It comes in header configuration. It has a maximum operating temperature of +125°c. The product is made from sturdy copper alloy materials.

pdf icon
MX23A 40 way R/A header Drawing(Technical Reference)
