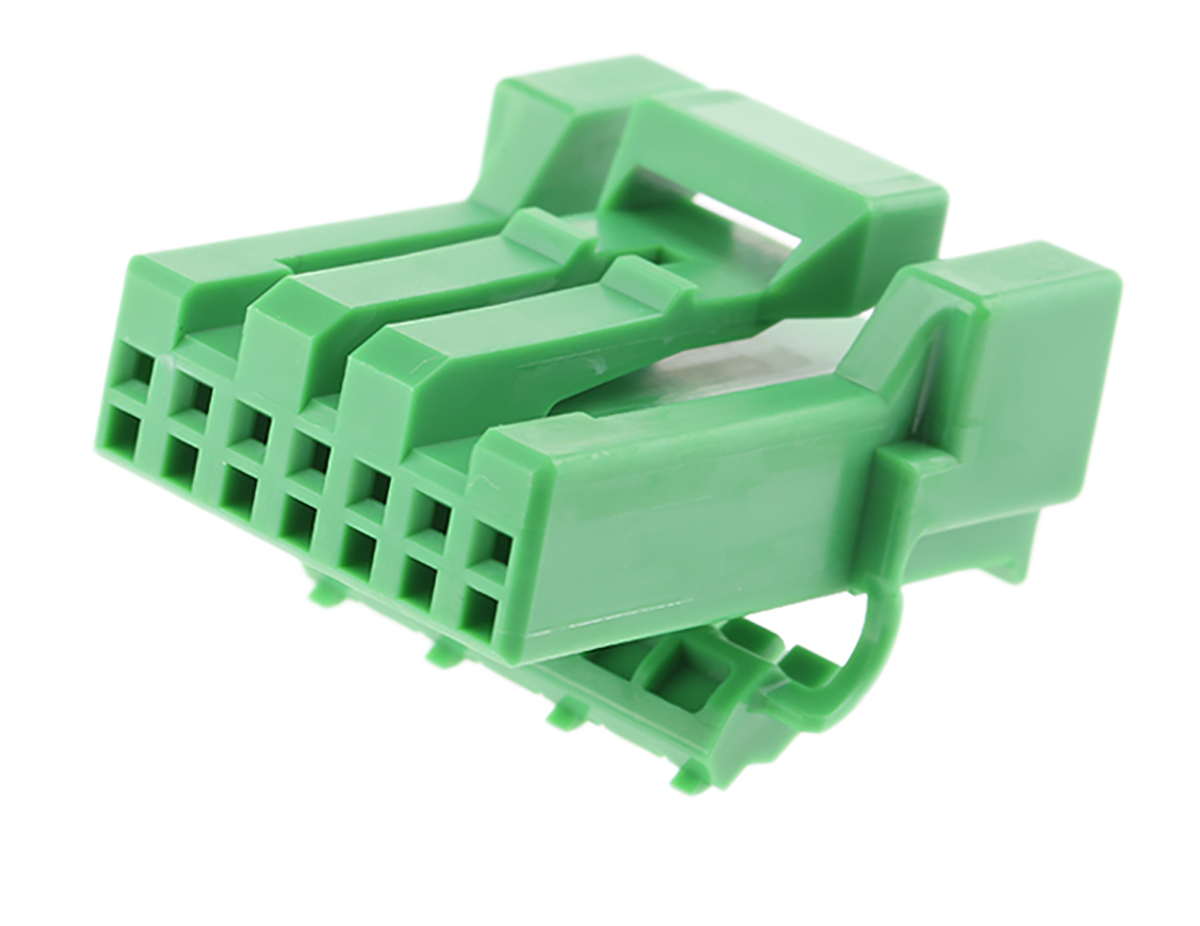

JAE 7 Way Cable Mount Socket Housing

IL-AG5-7S-S3C1 JAE 7 Way Cable Mount Socket Housing
IL-AG5-7S-S3C1
JAE

Product Information

Current Rating:
3A
Mounting Type:
Cable Mount
Gender:
Female
Colour:
Yellow
Height:
12.8mm
Housing Material:
PBT
Width:
21.1mm
Depth:
24.6mm
Number of Rows:
1
Minimum Operating Temperature:
-40°C
Series:
IL-AG5
Number of Contacts:
7
Type:
Socket Housing
Maximum Operating Temperature:
+85°C
Checking for live stock

This is 7 Way Cable Mount Socket Housing manufactured by JAE. The manufacturer part number is IL-AG5-7S-S3C1. The product has a current rating of 3a. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has a decent yellow colour. In addition, the height is 12.8mm. The product also features robust pbt housing material. Furthermore, the product is 21.1mm wide. The product comes in 24.6mm depth. It comes in 1 of rows. Whereas, the minimum operating temperature of the product is -40°c. The product il-ag5, is a highly preferred choice for users. The product contains 7 contacts. It comes in socket housing configuration. It has a maximum operating temperature of +85°c.

pdf icon
JAE IL-AG5 Series Comparison table(Technical Reference)
pdf icon
Connector Specification_IL-AG5, IL-AG6, IL-AG7, IL-AG9(Technical Reference)
pdf icon
Datasheet_IL-AG5-7S-S3C1(Technical Reference)
pdf icon
Product Drawing_IL-AG5-7S-S3C1(Technical Reference)
