Name: ADV7802BSTZ-80, Analog Devices
Brand: Analog Devices
SKU: ET14102469
Price: 15.04 GBP
Availability: PreOrder

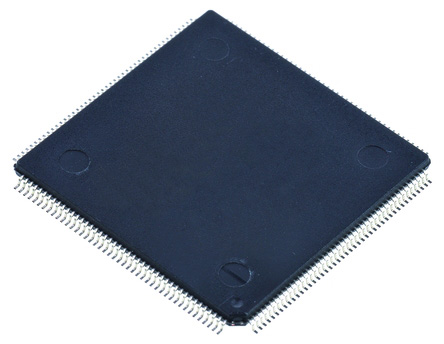

ADV7802BSTZ-80 , Video Decoder CVBS, NTSC, PAL, SECAM, S-Video 4-channel 12bit- 1.8 (Digital) V, 3.3 (Analogue) V 176-Pin

(0)

Product Information

Number of ADCs:

Dimensions:

24.2 x 24.2 x 1.45mm

Mounting Type:

Surface Mount

ADC/DAC Resolution:

12bit

Power Supply Type:

Single

Typical Operating Supply Voltage:

1.8 (Digital) V, 3.3 (Analogue) V

Package Type:

LQFP

Minimum Operating Temperature:

0 °C

Maximum Operating Temperature:

+85 °C

Pin Count:

176

Standard Input Type:

CVBS, NTSC, PAL, SECAM, S-Video

Checking for live stock

This is Video Decoder CVBS NTSC PAL SECAM S-Video 4-channel 12bit- 1.8 (Digital) V 3.3 (Analogue) V 176-Pin manufactured by Analog Devices. The manufacturer part number is ADV7802BSTZ-80. It contains 4 ADCs . The given dimensions of the product include 24.2 x 24.2 x 1.45mm. The product is available in surface mount configuration. It has about 12bit ADC/DAC resolution . It is a type of single power supply. It has 1.8 (digital) v, 3.3 (analogue) v of typical operating supply voltage. The package is a sort of lqfp. Whereas, the minimum operating temperature of the product is 0 °c. It has a maximum operating temperature of +85 °c. It contains 176 pins. It has a standard input type of cvbs, ntsc, pal, secam, s-video .
