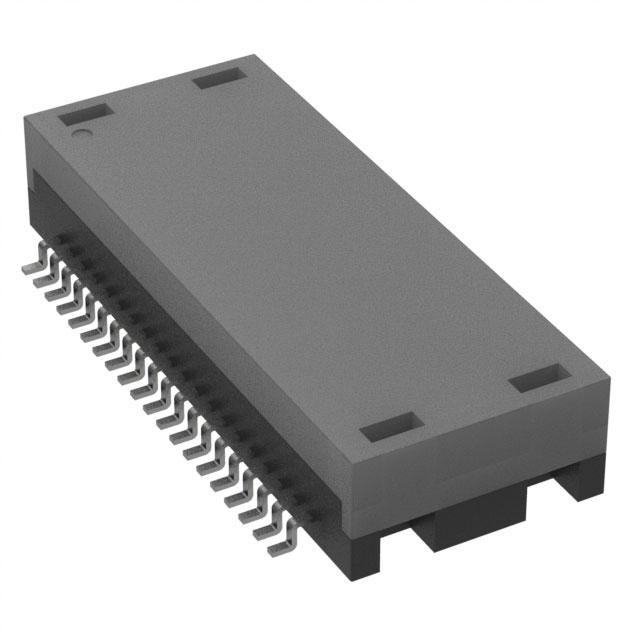

TE Connectivity AMP Connectors 5-2337826-1

5-2337826-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Frequency Range:
-
HTSUS:
8536.69.4040
Termination Style:
Gull Wing
Power Level:
-
Approval Agency:
-
DC Resistance (DCR) - Primary:
-
Height - Seated (Max):
0.285" (7.24mm)
REACH Status:
Vendor Undefined
edacadModel:
5-2337826-1 Models
edacadModelUrl:
/en/models/10270277
Operating Temperature:
-40°C ~ 105°C
DC Resistance (DCR) - Secondary:
-
Impedance - Secondary (Ohms):
-
Package:
Tube
Size / Dimension:
1.232" L x 0.482" W (31.30mm x 12.25mm)
Transformer Type:
-
Turns Ratio - Primary:Secondary:
1CT:1CT
standardLeadTime:
24 Weeks
Voltage - Isolation:
1500Vrms
Impedance - Primary (Ohms):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Insertion Loss:
-1dB Max @ 100kHz ~ 100MHz
Mounting Type:
Surface Mount
Series:
-
Frequency Response:
-
Return Loss:
-18dB Min @ 1MHz ~ 30MHz
Base Product Number:
2337826
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5-2337826-1. It is assigned with possible HTSUS value of 8536.69.4040. Moreover, it has gull wing terminal style. It has the maximum seated height of 0.285" (7.24mm). In addition, it is vendor undefined. The product has -40°c ~ 105°c operating temperature range. It is shipped in tube package . The product's diameters include 1.232" l x 0.482" w (31.30mm x 12.25mm). The typical primary and secondary turn ratio is 1ct:1ct. It has a long 24 weeks standard lead time. 1500vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). Allows -1db max @ 100khz ~ 100mhz of insertion loss. The product is available in surface mount configuration. It has a return loss of -18db min @ 1mhz ~ 30mhz. Moreover, it corresponds to 2337826, a base product number of the product. The product is designated with the ear99 code number.
